Home  >  Power Transmission  >  Electric Motors and Controls  >  AC/DC Motors  > E114196.00 LEESON

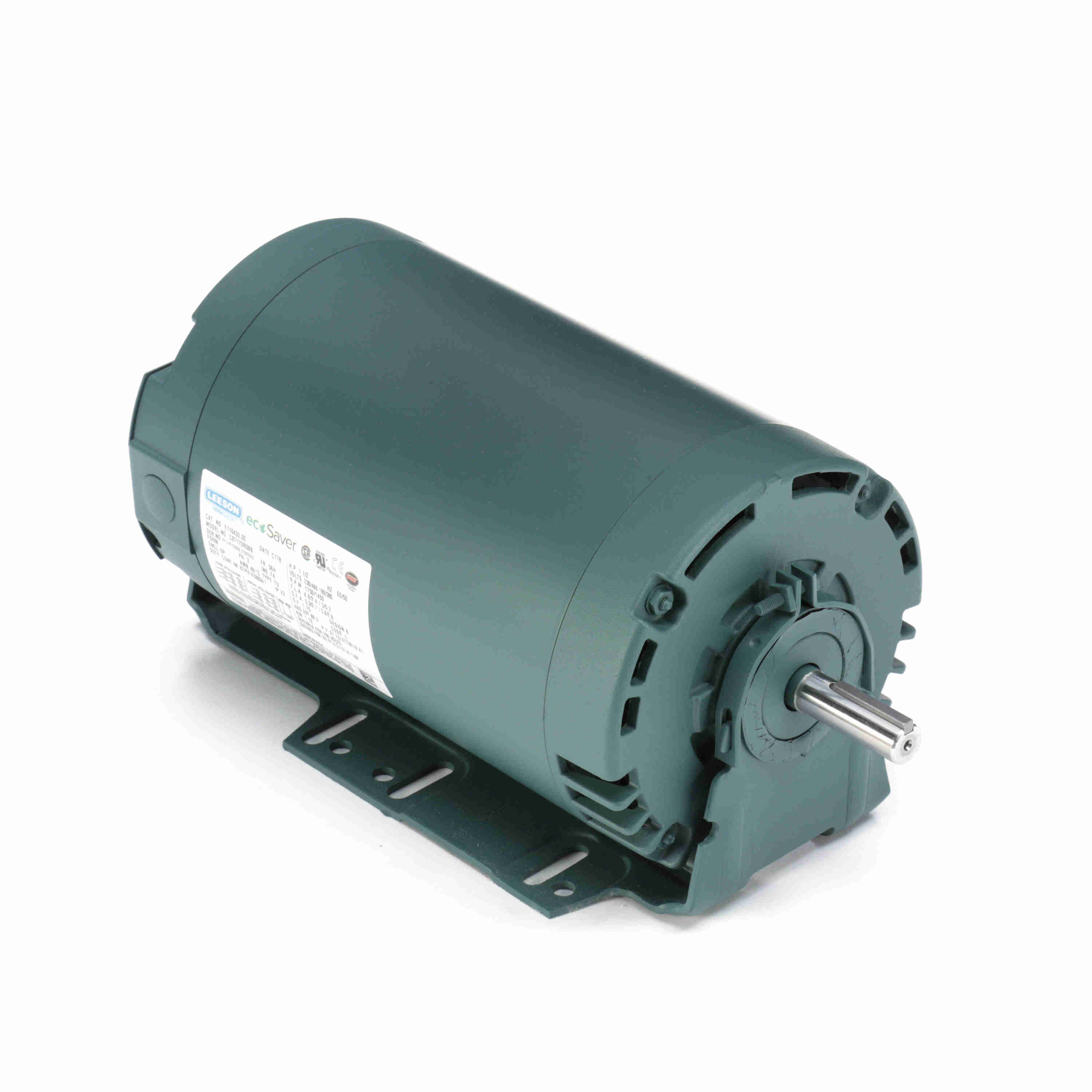

E114196.00 LEESON

2 HP General Purpose Motor, 3 phase, 3600 RPM, 230/460 V, 56H Frame, ODP
Item #: L24OF36040
Manufacturer: LEESON ELECTRIC CORP.
931.33
Each
Quantity:
Quantity Price
1 931.33
L24OF36040

Electric Motor Type

Manufacturer
LEESON ELECTRIC CORP.
Motor Phase
3
Horsepower
2
RPM
3490
Motor Voltage
230/460
Frame Size
56
Enclosure Type
ODP
Frequency Rating
60
Mounting Type
Resilient Base
Duty
Continuous
Amp Load
4.8/2.4
Full Load Current
4.8/2.4
Efficiency
85.5
Shaft Diam
0.625
Overall length:
19.69
NEMA
19.69
Service Factor
1.15
Bearing Category
Ball
Insulation Class
F
IP Rating
22
Weight
46.00
Industry Standard
UL
