Home  >  Power Transmission  >  Electric Motors and Controls  >  AC/DC Motors  > E114192.00 LEESON

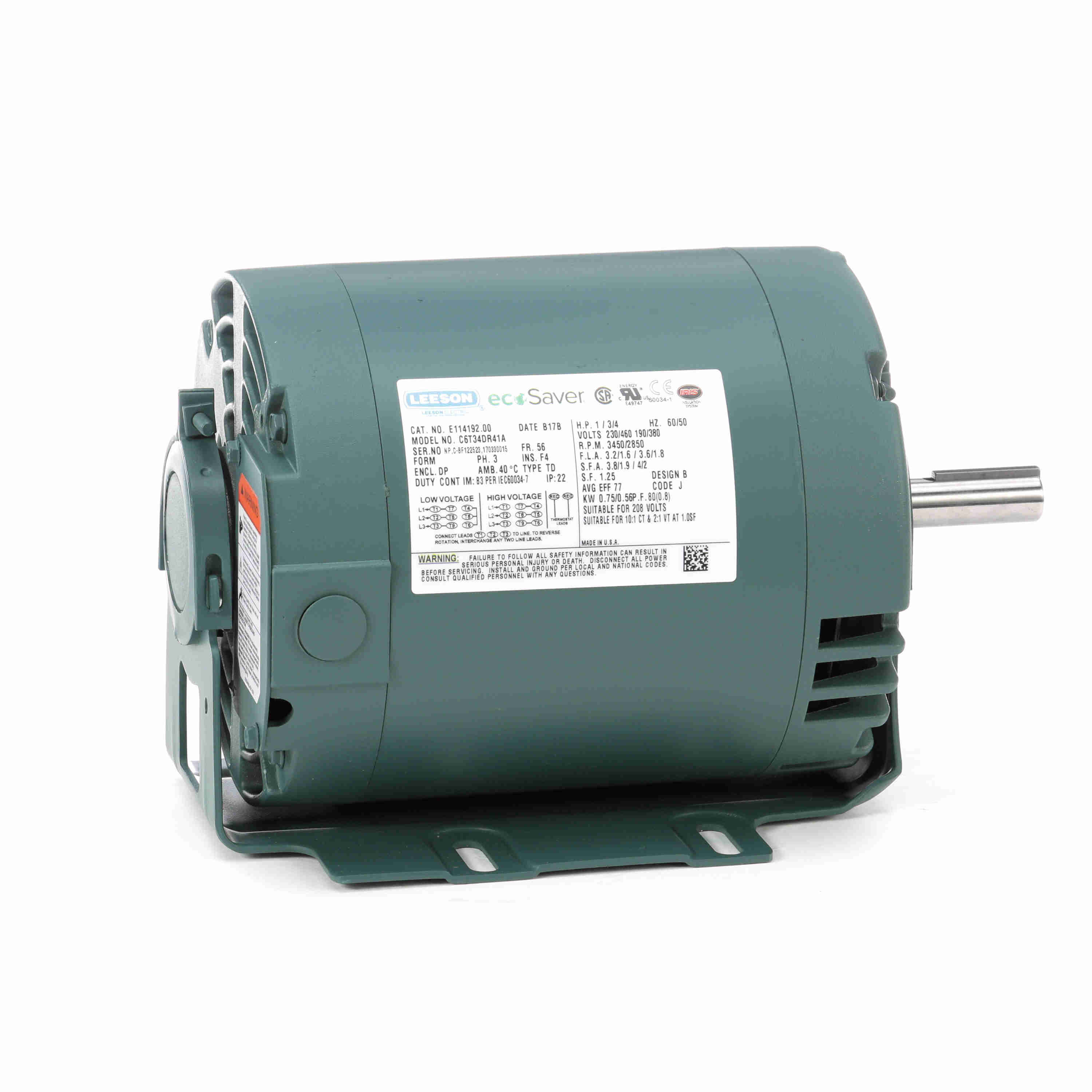

E114192.00 LEESON

1 HP General Purpose Motor, 3 phase, 3600 RPM, 230/460 V, 56 Frame, ODP
Item #: L24OF36000
Manufacturer: LEESON ELECTRIC CORP.
642.00
Each
Quantity:
Quantity Price
1 642.00
L24OF36000

Electric Motor Type

Manufacturer
LEESON ELECTRIC CORP.
Motor Phase
3
Horsepower
1
RPM
3450
Motor Voltage
230/460
Frame Size
56
Enclosure Type
ODP
Frequency Rating
60
Mounting Type
Resilient Base
Duty
Continuous
Amp Load
3.2/1.6
Full Load Current
3.2/1.6
Efficiency
77
Shaft Diam
0.625
Overall length:
14.44
NEMA
14.44
Service Factor
1.25
Bearing Category
Ball
Insulation Class
F
IP Rating
22
Weight
22.00
Industry Standard
UL
