Home  >  Power Transmission  >  Electric Motors and Controls  >  AC/DC Motors  > E113293.00 LEESON

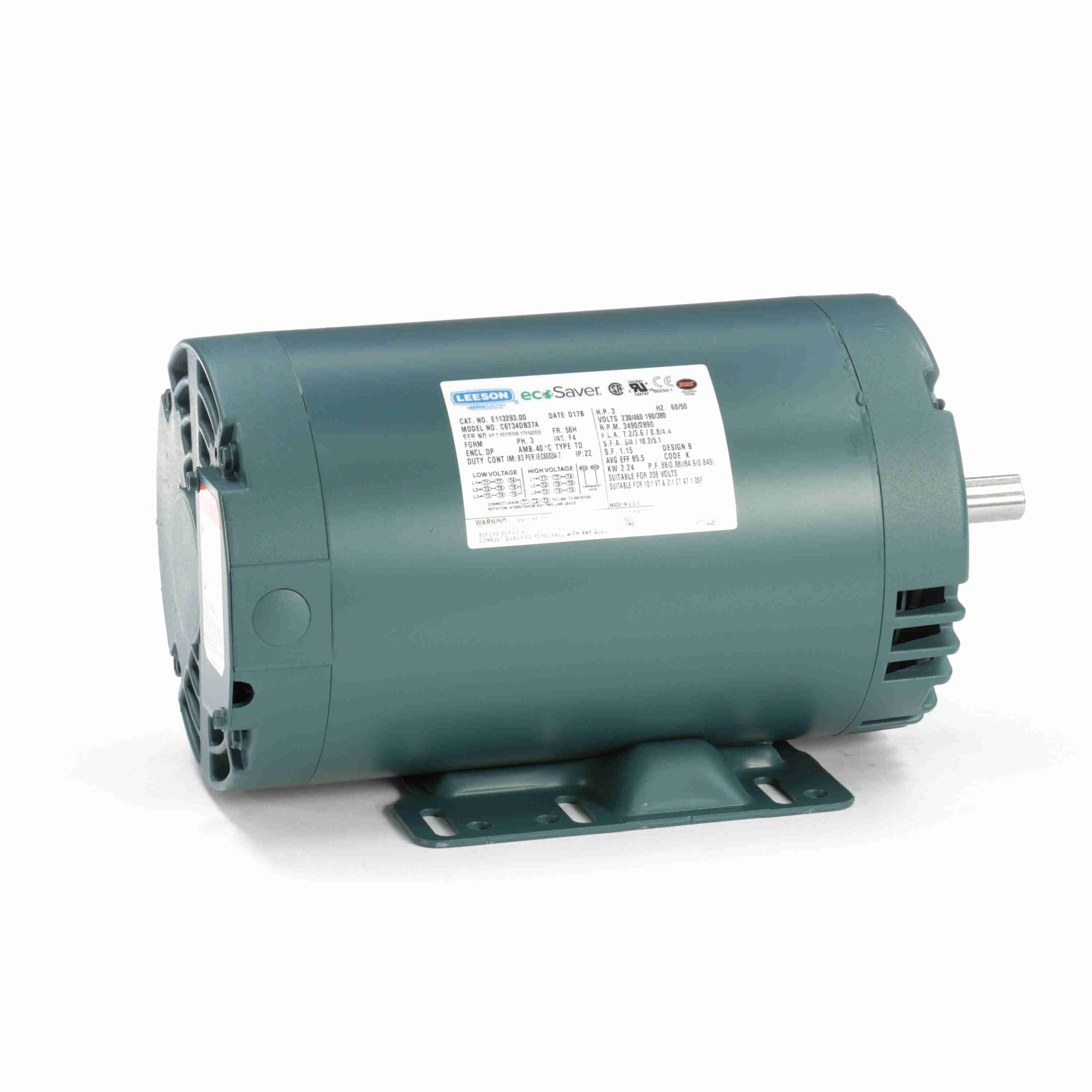

E113293.00 LEESON

3 HP General Purpose Motor, 3 phase, 3600 RPM, 230/460 V, 56H Frame, ODP
Item #: L24OF33180
Manufacturer: LEESON ELECTRIC CORP.
929.33
Each
Quantity:
Quantity Price
1 929.33
L24OF33180

Electric Motor Type

Manufacturer
LEESON ELECTRIC CORP.
Motor Phase
3
Horsepower
3
RPM
3490
Motor Voltage
230/460
Frame Size
56
Enclosure Type
ODP
Frequency Rating
60
Mounting Type
Rigid Base
Duty
Continuous
Amp Load
7.2/3.6
Full Load Current
7.2/3.6
Efficiency
85.5
Shaft Diam
0.625
Overall length:
19.69
NEMA
19.69
Service Factor
1.15
Bearing Category
Ball
Insulation Class
F
IP Rating
22
Weight
44.00
Industry Standard
UL
