Home  >  Power Transmission  >  Electric Motors and Controls  >  AC/DC Motors  > E116763.00 LEESON

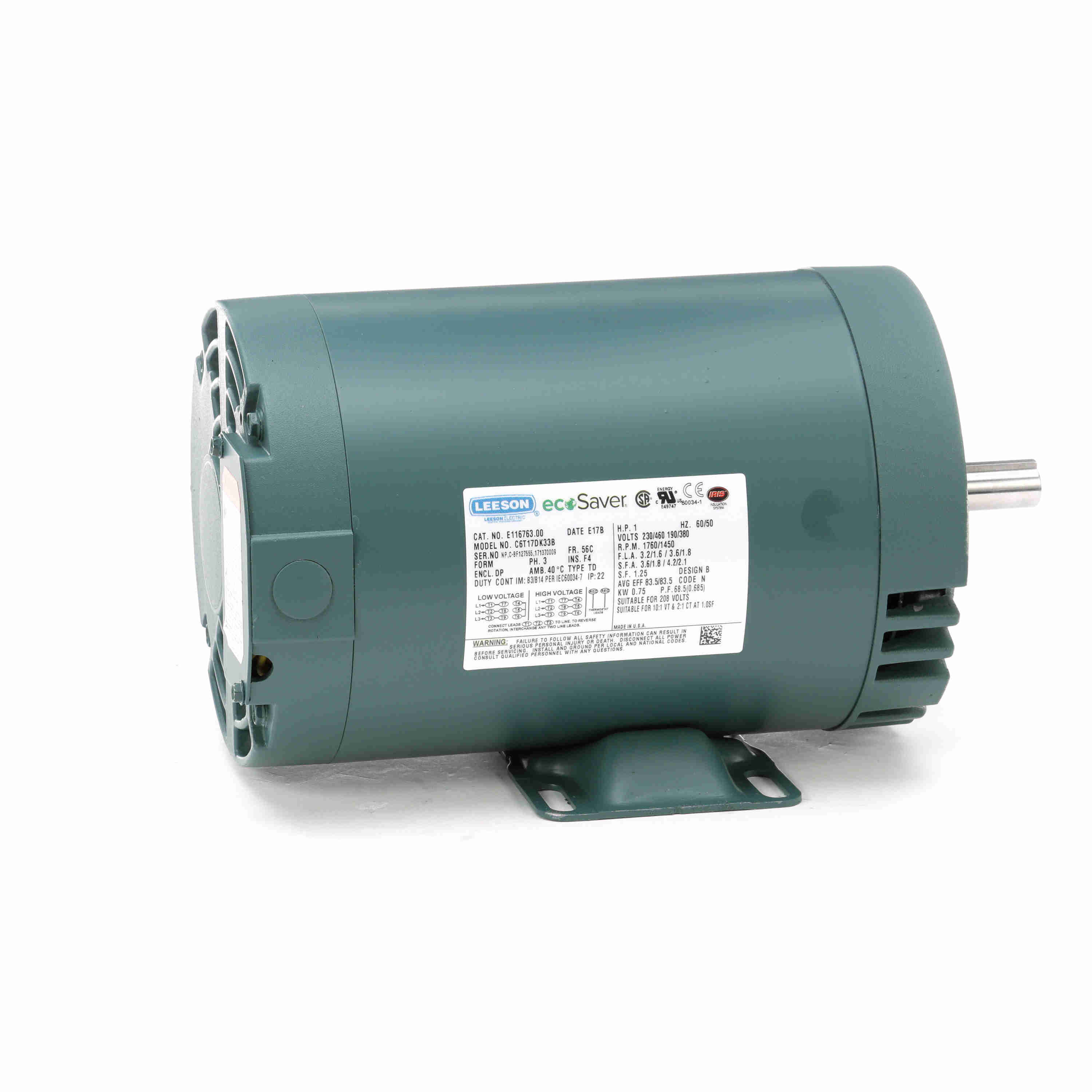

E116763.00 LEESON

1 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 56C Frame, ODP
Item #: L24OF30280
Manufacturer: LEESON ELECTRIC CORP.
853.33
Each
Quantity:
Quantity Price
1 853.33
L24OF30280

Electric Motor Type

Manufacturer
LEESON ELECTRIC CORP.
Motor Phase
3
Horsepower
1
RPM
1760
Motor Voltage
230/460
Frame Size
56
Enclosure Type
ODP
Frequency Rating
60
Mounting Type
Rigid Base
Duty
Continuous
Amp Load
3.2/1.6
Full Load Current
3.2/1.6
Efficiency
83.5
Shaft Diam
0.625
Overall length:
14.63
NEMA
14.63
Service Factor
1.25
Bearing Category
Ball
Insulation Class
F
IP Rating
22
Weight
37.00
Industry Standard
UL
