Home  >  Power Transmission  >  Electric Motors and Controls  >  AC/DC Motors  > E110425.00 LEESON

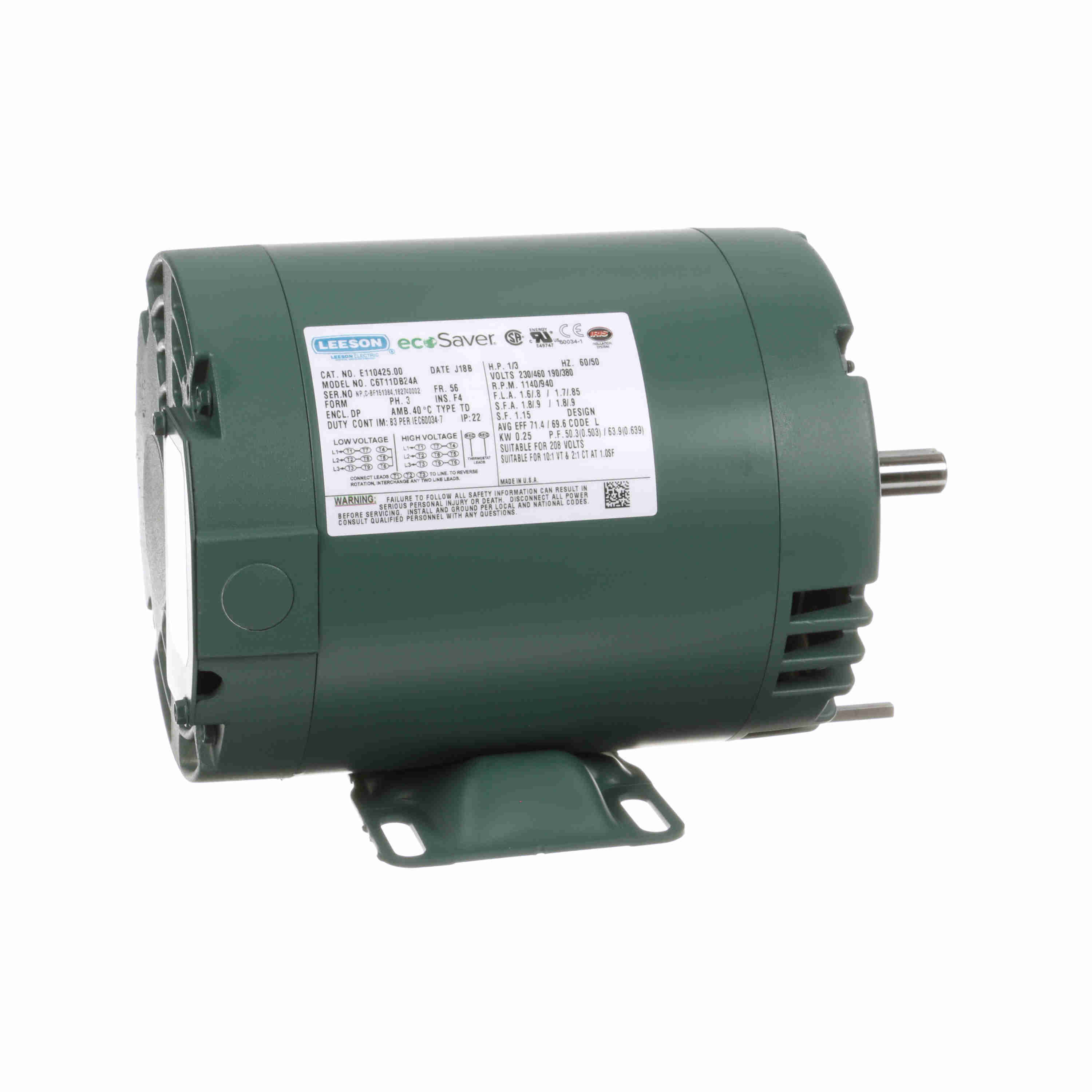

E110425.00 LEESON

0.33 HP General Purpose Motor, 3 phase, 1200 RPM, 230/460 V, 56 Frame, ODP
Item #: L24OF29660
Manufacturer: LEESON ELECTRIC CORP.
170.49
Each
Quantity:
Quantity Price
1 170.49
L24OF29660

Electric Motor Type

Manufacturer
LEESON ELECTRIC CORP.
Motor Phase
3
Horsepower
0.33
RPM
1140
Motor Voltage
230/460
Frame Size
56
Enclosure Type
ODP
Frequency Rating
60
Mounting Type
Rigid Base
Duty
Continuous
Amp Load
1.6/0.80
Full Load Current
1.6/0.80
Efficiency
71.4
Shaft Diam
0.625
Overall length:
14.63
NEMA
14.63
Service Factor
1.15
Bearing Category
Ball
Insulation Class
F
IP Rating
22
Weight
23.00
Industry Standard
UL
