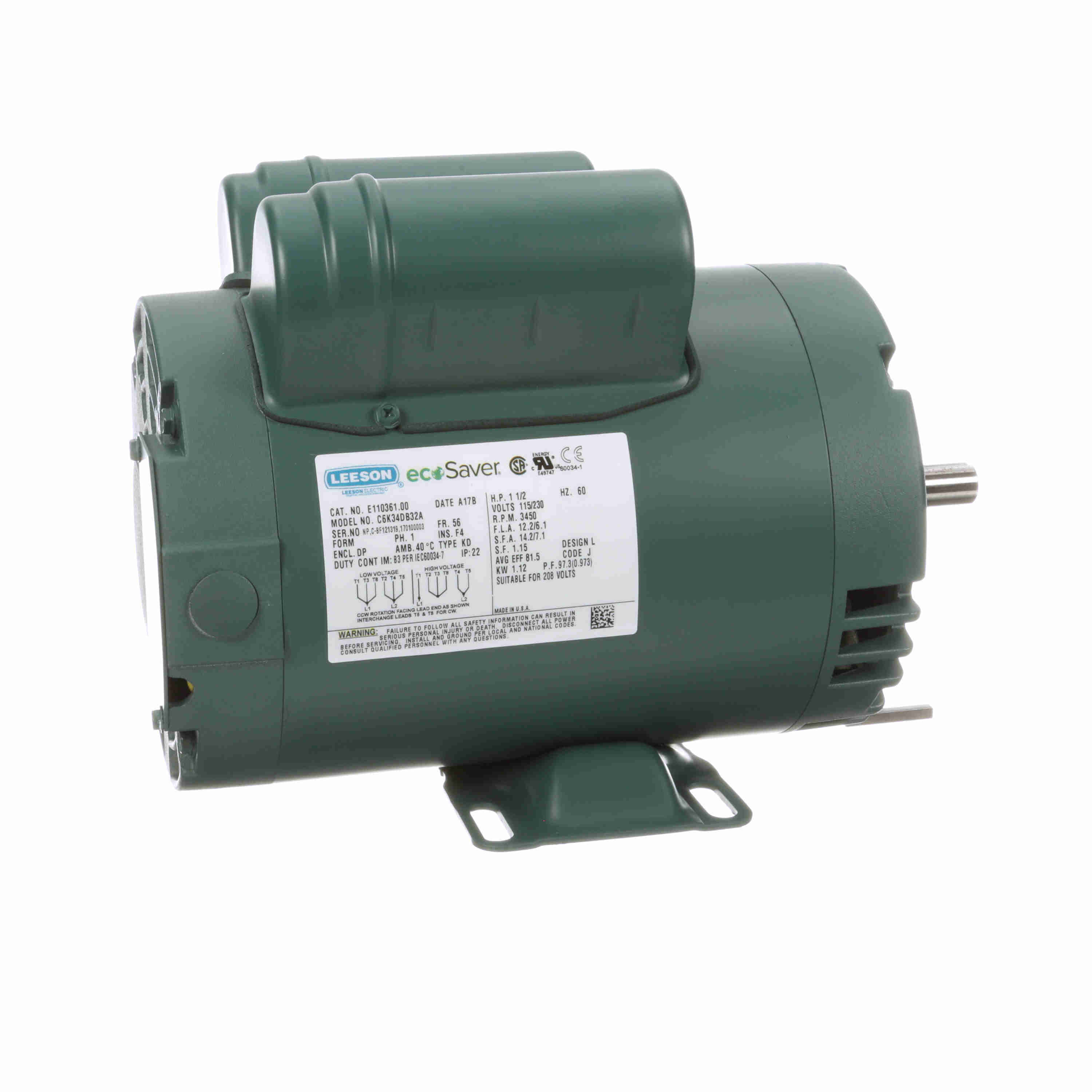

E110361.00 LEESON

1.50 HP General Purpose Motor, 1 phase, 3600 RPM, 115/230 V, 56 Frame, ODP
Item #: L24OF29000
Manufacturer: LEESON ELECTRIC CORP.
937.33
Each
Quantity:
Quantity Price
1 937.33
L24OF29000

Electric Motor Type

Manufacturer
LEESON ELECTRIC CORP.
Motor Phase
1
Horsepower
1.50
RPM
3450
Motor Voltage
115/230
Frame Size
56
Enclosure Type
ODP
Frequency Rating
60
Mounting Type
Rigid Base
Duty
Continuous
Amp Load
12.2/6.1
Full Load Current
12.2/6.1
Efficiency
81.5
Shaft Diam
0.625
Overall length:
14.63
NEMA
14.63
Service Factor
1.15
Bearing Category
Ball
Insulation Class
F
IP Rating
22
Weight
38.00
Industry Standard
UL
