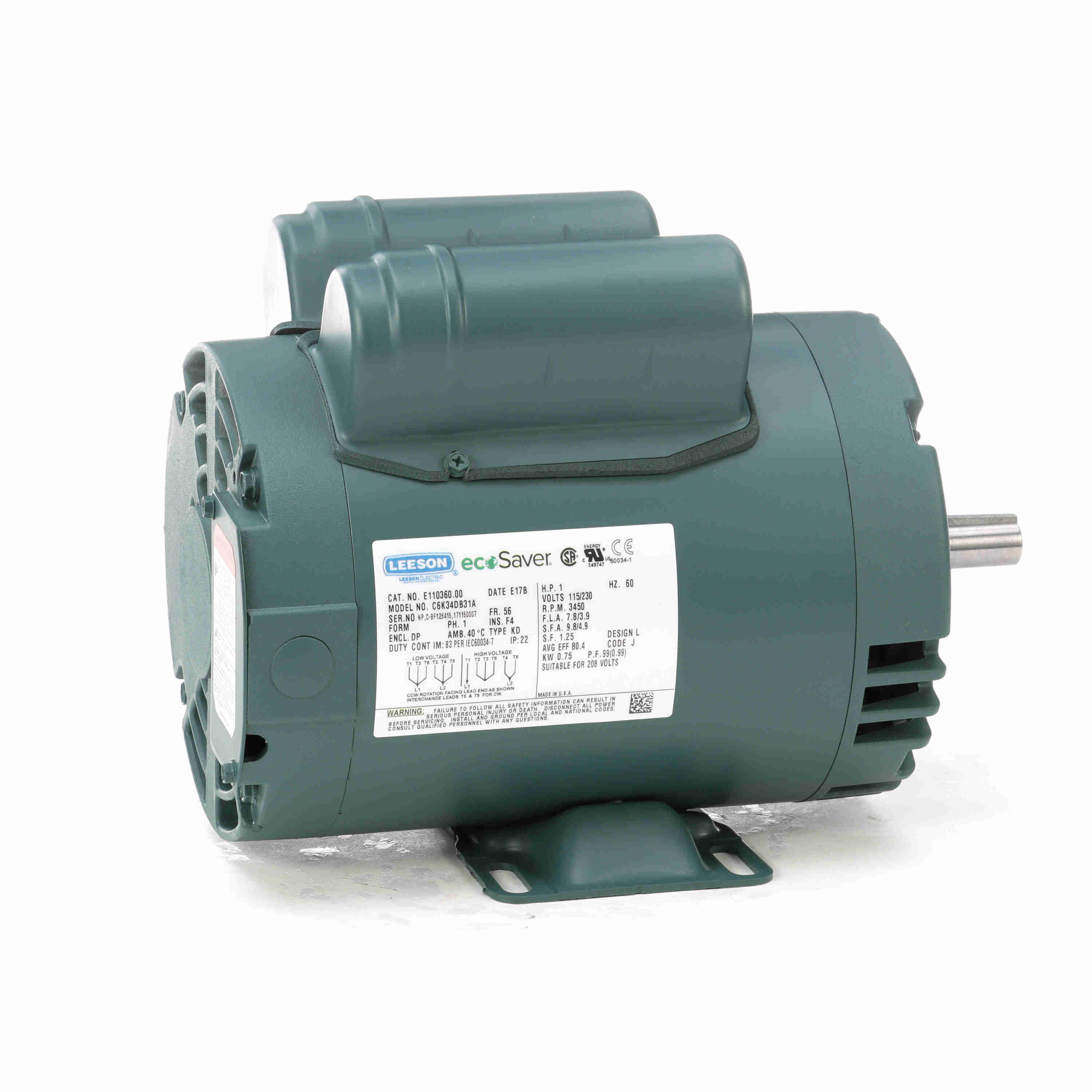

E11036000 LEESON

1 HP General Purpose Motor, 1 phase, 3600 RPM, 115/230 V, 56 Frame, ODP
Item #: L24OF28980
Manufacturer: LEESON ELECTRIC CORP.
208.33
Each
Quantity:
Quantity Price
1 208.33
L24OF28980

Electric Motor Type

Manufacturer
LEESON ELECTRIC CORP.
Motor Phase
1
Horsepower
1
RPM
3450
Motor Voltage
115/230
Frame Size
56
Enclosure Type
ODP
Frequency Rating
60
Mounting Type
Rigid Base
Duty
Continuous
Amp Load
7.8/3.9
Full Load Current
7.8/3.9
Efficiency
80.4
Shaft Diam
0.625
Overall length:
14.63
NEMA
14.63
Service Factor
1.25
Bearing Category
Ball
Insulation Class
F
IP Rating
22
Weight
34.00
Industry Standard
UL
