Home  >  Power Transmission  >  Electric Motors and Controls  >  AC/DC Motors  > E110052.00 LEESON

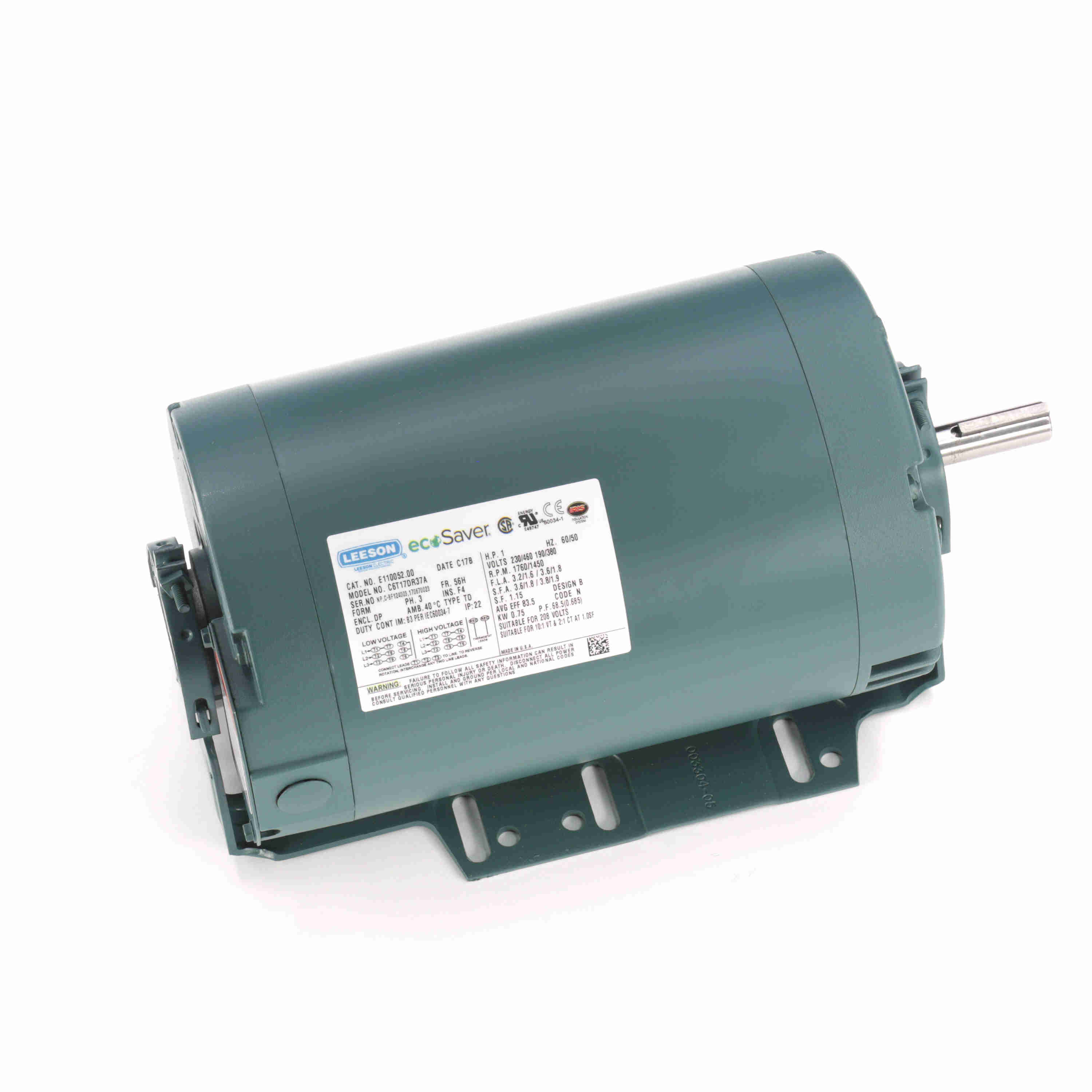

E110052.00 LEESON

1 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 56H Frame, ODP
Item #: L24OF27520
Manufacturer: LEESON ELECTRIC CORP.
824.67
Each
Quantity:
Quantity Price
1 824.67
L24OF27520

Electric Motor Type

Manufacturer
LEESON ELECTRIC CORP.
Motor Phase
3
Horsepower
1
RPM
1760
Motor Voltage
230/460
Frame Size
56
Enclosure Type
ODP
Frequency Rating
60
Mounting Type
Resilient Base
Duty
Continuous
Amp Load
3.2/1.6
Full Load Current
3.2/1.6
Efficiency
83.5
Shaft Diam
0.625
Overall length:
14.63
NEMA
14.63
Service Factor
1.15
Bearing Category
Ball
Insulation Class
F
IP Rating
22
Weight
38.00
Industry Standard
UL
