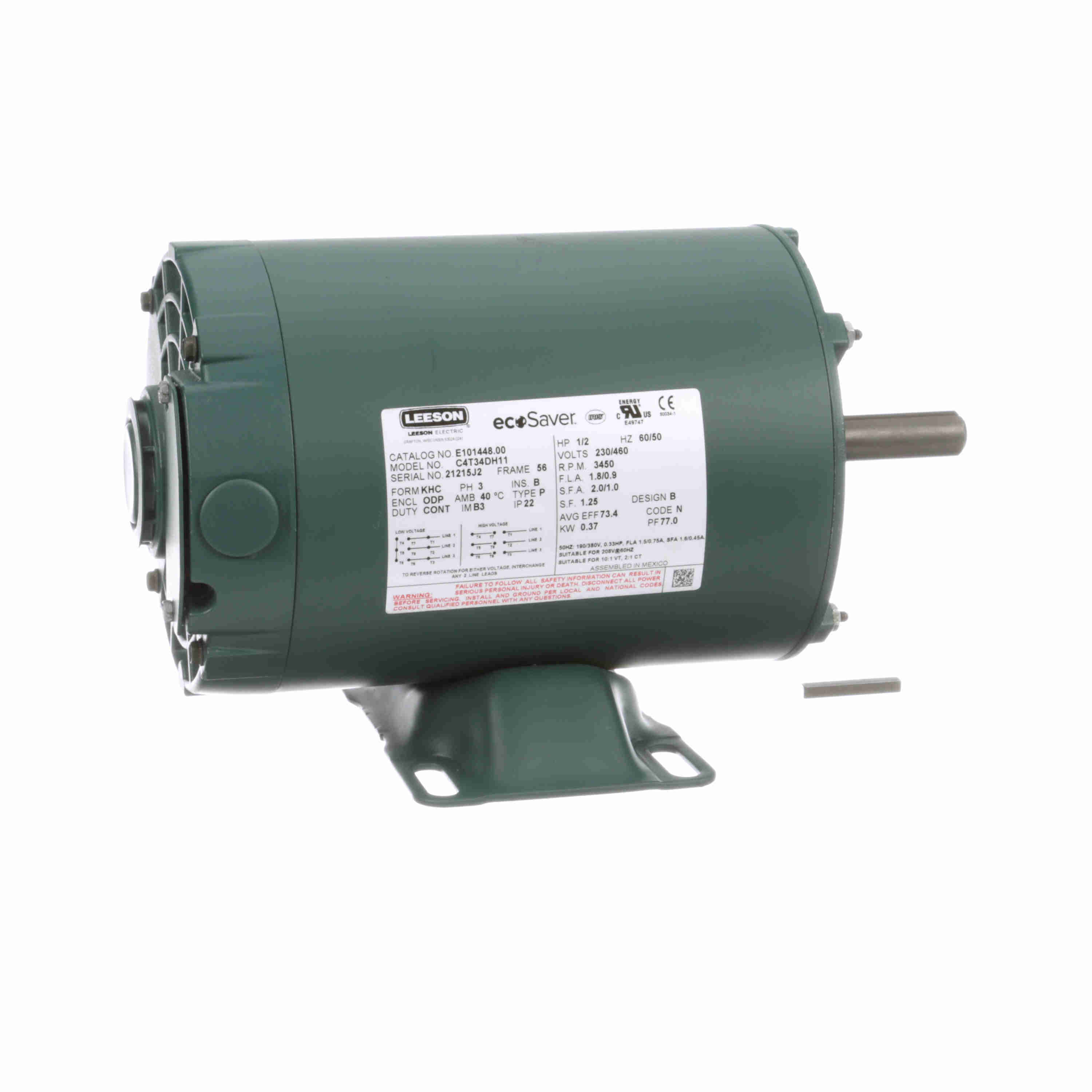

E101448.00 LEESON

0.50 HP General Purpose Motor, 3 phase, 3600 RPM, 230/460 V, 48 Frame, ODP
Item #: L24OF23480
Manufacturer: LEESON ELECTRIC CORP.
520.00
Each
Quantity:
Quantity Price
1 520.00
L24OF23480

Electric Motor Type

Manufacturer
LEESON ELECTRIC CORP.
Motor Phase
3
Horsepower
0.50
RPM
3450
Motor Voltage
230/460
Frame Size
48
Enclosure Type
ODP
Frequency Rating
60
Mounting Type
Rigid Base
Duty
Continuous
Amp Load
1.8/0.90
Full Load Current
1.8/0.90
Efficiency
73.4
Shaft Diam
0.500
Overall length:
14.63
NEMA
14.63
Service Factor
1.25
Bearing Category
Ball
Insulation Class
B
IP Rating
22
Weight
30.00
Industry Standard
UL
