Home  >  Power Transmission  >  Electric Motors and Controls  >  AC/DC Motors  > E101447.00 LEESON

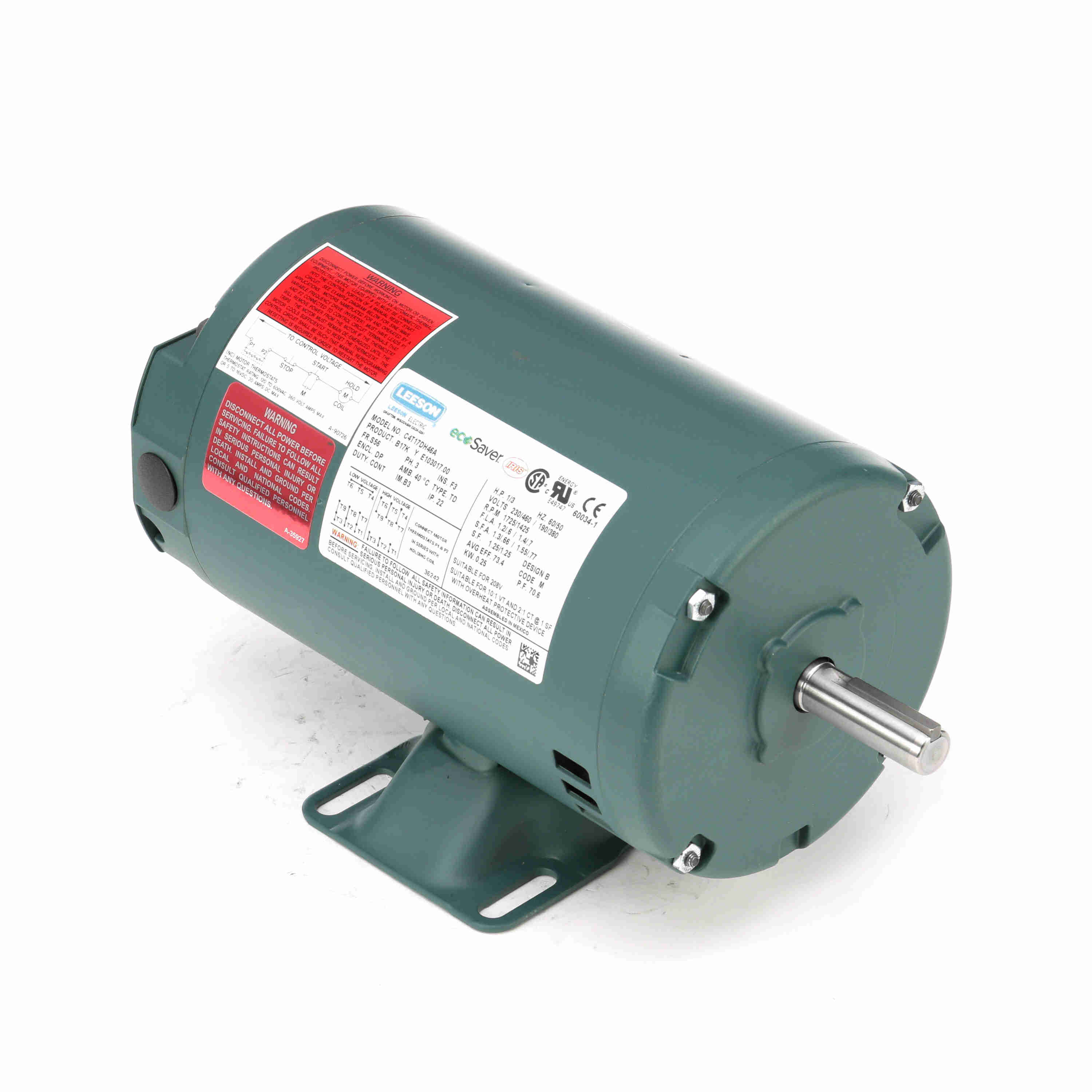

E101447.00 LEESON

0.33 HP General Purpose Motor, 3 phase, 3600 RPM, 230/460 V, 48 Frame, ODP
Item #: L24OF23460
Manufacturer: LEESON ELECTRIC CORP.
483.33
Each
Quantity:
Quantity Price
1 483.33
L24OF23460

Electric Motor Type

Manufacturer
LEESON ELECTRIC CORP.
Motor Phase
3
Horsepower
0.33
RPM
3450
Motor Voltage
230/460
Frame Size
48
Enclosure Type
ODP
Frequency Rating
60
Mounting Type
Rigid Base
Duty
Continuous
Amp Load
1.4/0.70
Full Load Current
1.4/0.70
Efficiency
69.5
Shaft Diam
0.500
Overall length:
14.63
NEMA
14.63
Service Factor
1.35
Bearing Category
Ball
Insulation Class
B
IP Rating
22
Weight
40.00
Industry Standard
UL
