Home  >  Power Transmission  >  Electric Motors and Controls  >  AC/DC Motors  > E100354.00 LEESON

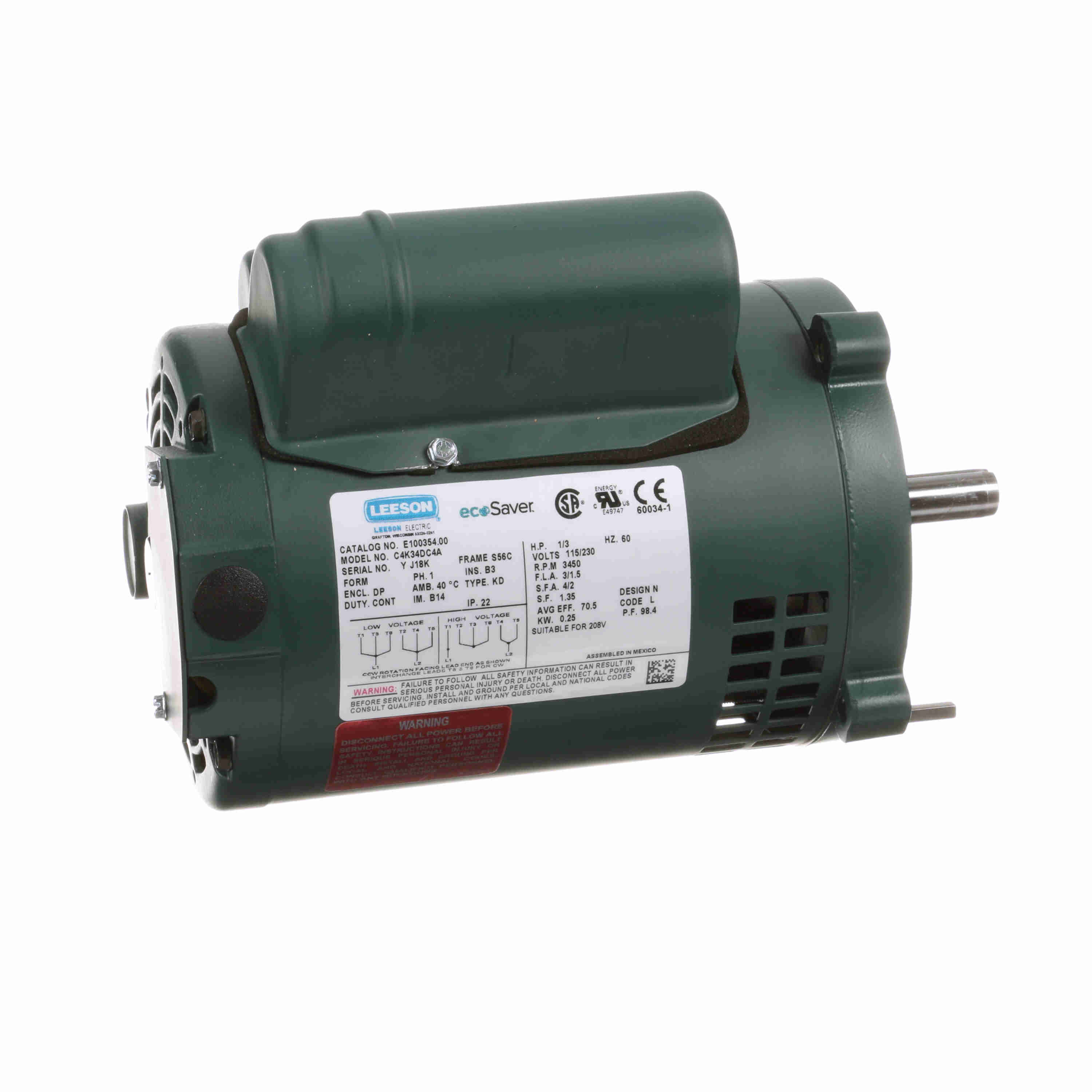

E100354.00 LEESON

0.33 HP General Purpose Motor, 1 phase, 3600 RPM, 115/230 V, 56C Frame, ODP
Item #: L24OF22100
Manufacturer: LEESON ELECTRIC CORP.
460.00
Each
Quantity:
Quantity Price
1 460.00
L24OF22100

Electric Motor Type

Manufacturer
LEESON ELECTRIC CORP.
Motor Phase
1
Horsepower
0.33
RPM
3450
Motor Voltage
115/230
Frame Size
56
Enclosure Type
ODP
Frequency Rating
60
Mounting Type
Round
Duty
Continuous
Amp Load
3.0/1.5
Full Load Current
3.0/1.5
Efficiency
70.5
Shaft Diam
0.625
Overall length:
13.75
NEMA
13.75
Service Factor
1.35
Bearing Category
Ball
Insulation Class
B
IP Rating
22
Weight
17.00
Industry Standard
UL
