Home  >  Power Transmission  >  Electric Motors and Controls  >  AC/DC Motors  > E100184.00 LEESON

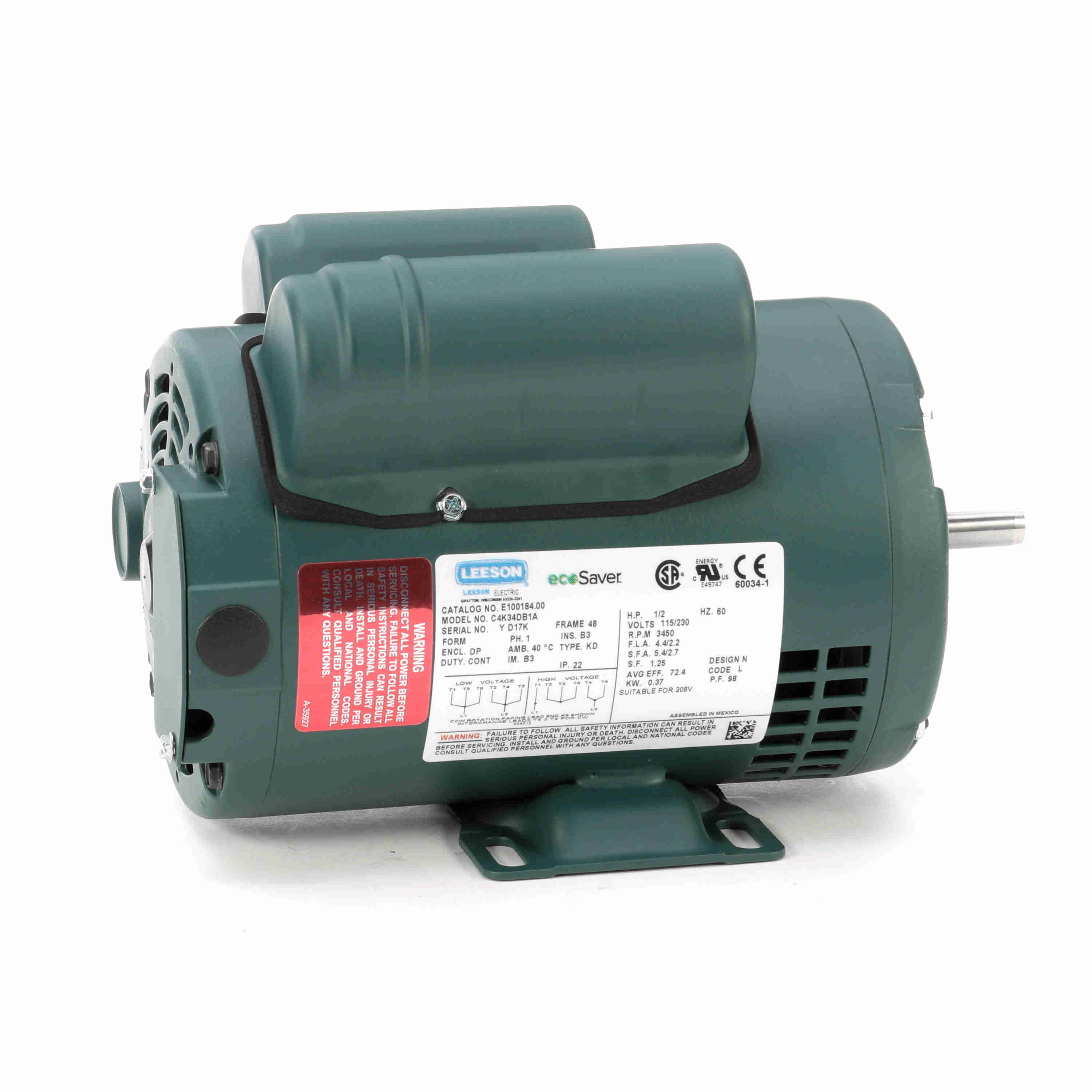

E100184.00 LEESON

0.50 HP General Purpose Motor, 1 phase, 3600 RPM, 115/230 V, 48 Frame, ODP
Item #: L24OF21900
Manufacturer: LEESON ELECTRIC CORP.
470.67
Each
Quantity:
Quantity Price
1 470.67
L24OF21900

Electric Motor Type

Manufacturer
LEESON ELECTRIC CORP.
Motor Phase
1
Horsepower
0.50
RPM
3450
Motor Voltage
115/230
Frame Size
48
Enclosure Type
ODP
Frequency Rating
60
Mounting Type
Rigid Base
Duty
Continuous
Amp Load
4.4/2.2
Full Load Current
4.4/2.2
Efficiency
72.4
Shaft Diam
0.500
Overall length:
13.75
NEMA
13.75
Service Factor
1.25
Bearing Category
Ball
Insulation Class
B
IP Rating
22
Weight
15.00
Industry Standard
UL
