Home  >  Power Transmission  >  Electric Motors and Controls  >  AC/DC Motors  > E100027.00 LEESON

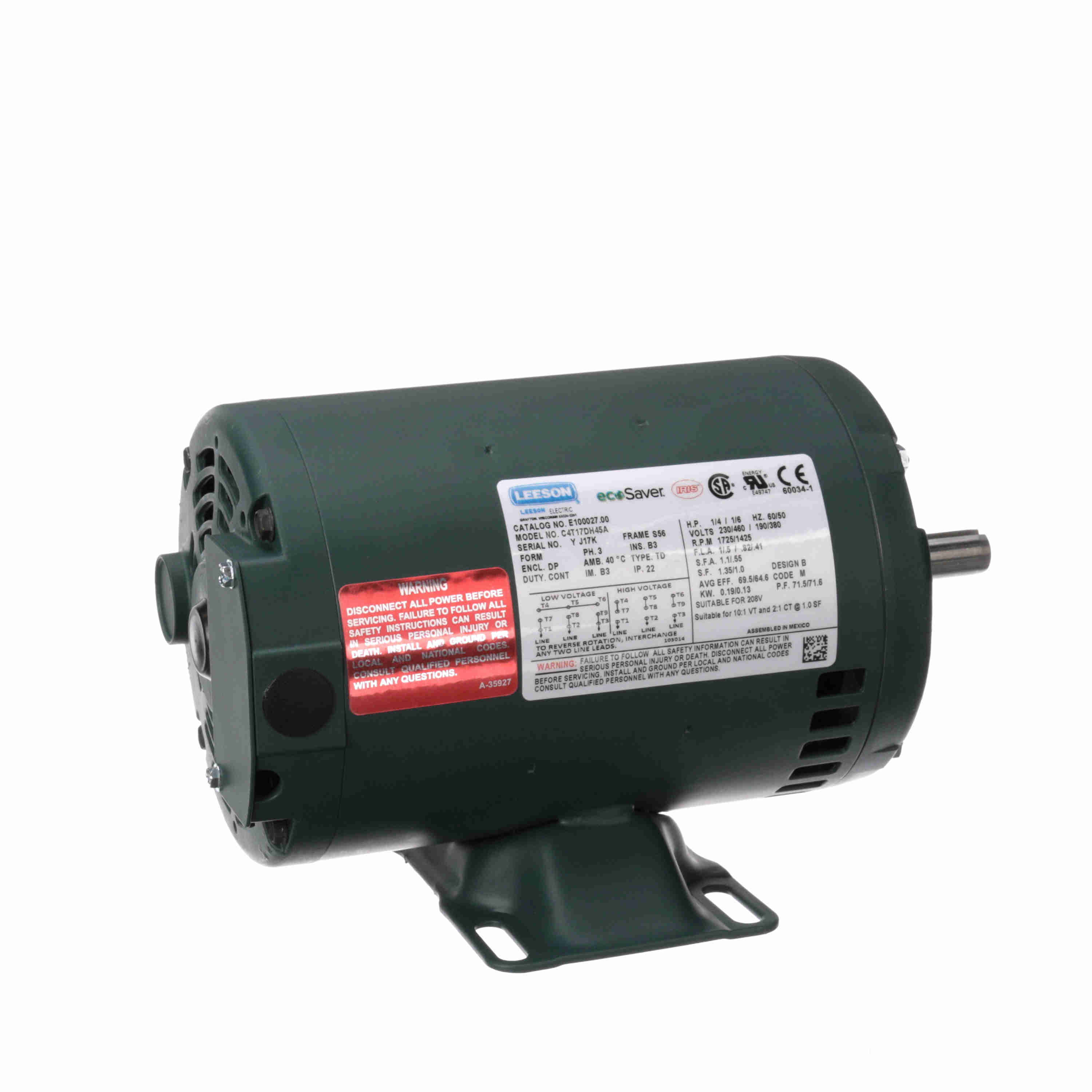

E100027.00 LEESON

0.25 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 56 Frame, ODP
Item #: L24OF21380
Manufacturer: LEESON ELECTRIC CORP.
472.00
Each
Quantity:
Quantity Price
1 472.00
L24OF21380

Electric Motor Type

Manufacturer
LEESON ELECTRIC CORP.
Motor Phase
3
Horsepower
0.25
RPM
1725
Motor Voltage
230/460
Frame Size
56
Enclosure Type
ODP
Frequency Rating
60
Mounting Type
Rigid Base
Duty
Continuous
Amp Load
1.0/0.50
Full Load Current
1.0/0.50
Efficiency
69.5
Shaft Diam
0.625
Overall length:
11.69
NEMA
11.69
Service Factor
1.35
Bearing Category
Ball
Insulation Class
B
IP Rating
22
Weight
20.00
Industry Standard
UL
