Home  >  Bearings  >  Pillow Blocks  >  Ball Bearing  >  Tapped Base  > UGSHE212 AMI

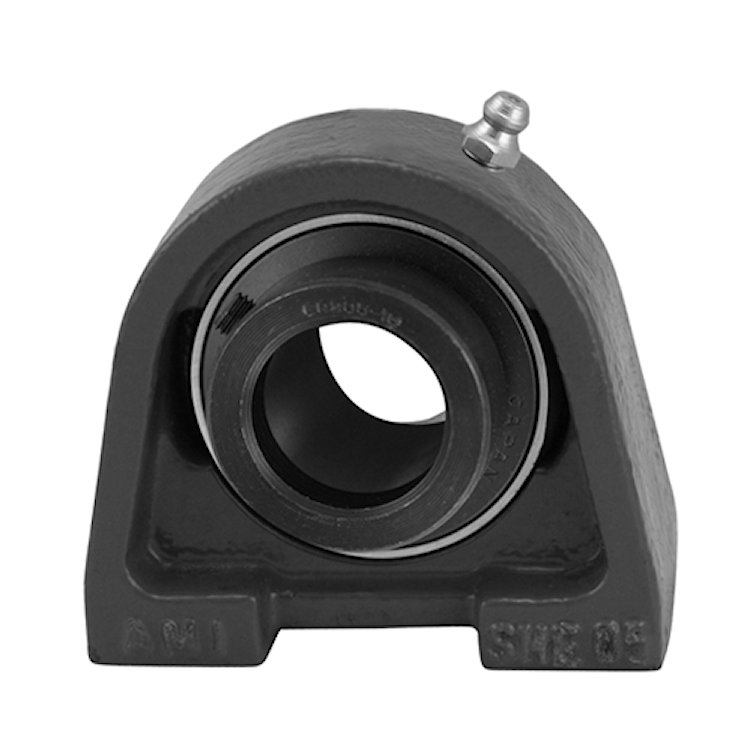

UGSHE212 AMI

60MM WIDE ECCENTRIC COLLAR TAPPED BASE PILLOW BLO
Item #: A85KZ61665
Manufacturer: ASAHI - MOLINE INC.
189.89
Each
Quantity:
Quantity Price
1 189.89
A85KZ61665

Mounted PB Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Tapped Base Pillow Block
Shaft Size
60 mm
Locking Device
Eccentric Collar
Shaft Centerline
69.9 mm
Insert No.
UG212
Overall length:
150 mm
Bolt Center Dim.
118 mm
Overall Height
140 mm
Seal Style
Contact with Slinger
LTB
77.8 mm
Roller Configuration
Ball Bearing
Duty Type
Normal Duty
Dynamic Load
5350 kgf
Static Load
3700 kgf
Bolt Size
M16
Base Width
61 mm
Bearing Housing Material
Cast Iron
Weight
9.56 LB
