Home  >  Bearings  >  Flange Units  >  Ball Bearing  >  4 Bolt Medium Duty  > UKFS322+HE2322 AMI

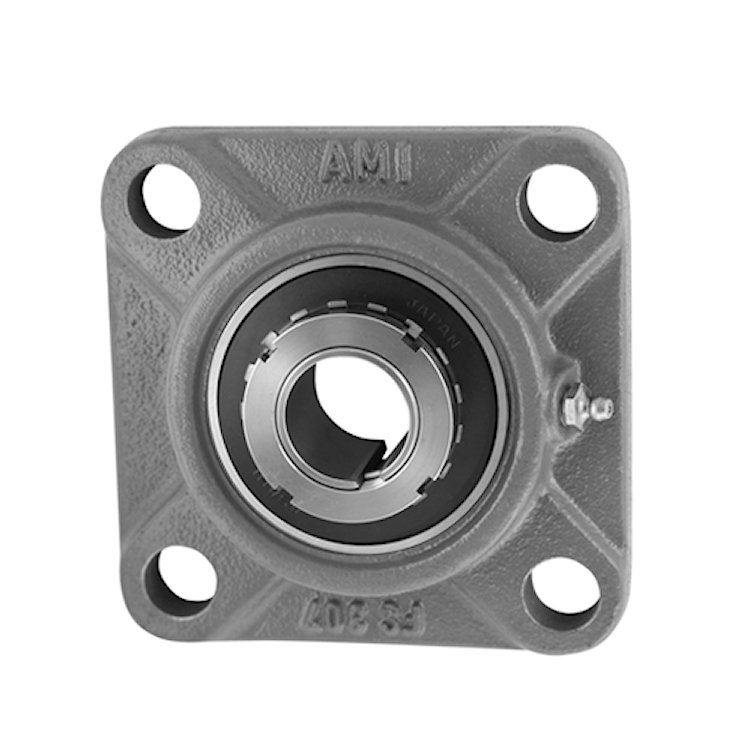

UKFS322+HE2322 AMI

4" HEAVY WIDE ADAPTER 4-BOLT PILOTED FLANGE
Item #: A85KX98600
Manufacturer: ASAHI - MOLINE INC.
1810.00
Each
Quantity:
Quantity Price
1 1810.00
A85KX98600

Mounted 2 and 4 Bolt Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Four Bolt Flange
Shaft Size
4.0000
Locking Device
Adapter Sleeve
Bolt Center
10-15/32"
Expansion Type
NON-EXP
Insert No.
UK322+HE2322
Overall length:
13-25/64"
Seal Style
Contact with Slinger
LTB
4.134"
Housing Config
Four Bolt Flange
Roller Configuration
Ball Bearing
Duty Type
Heavy Duty
Dynamic Load
46100 lbf
Static Load
40200 lbf
Bearing Housing Material
Cast Iron
Weight
82 LB
