Home  >  Bearings  >  Pillow Blocks  >  Ball Bearing  >  Medium Duty  > UGSAO307-23 AMI

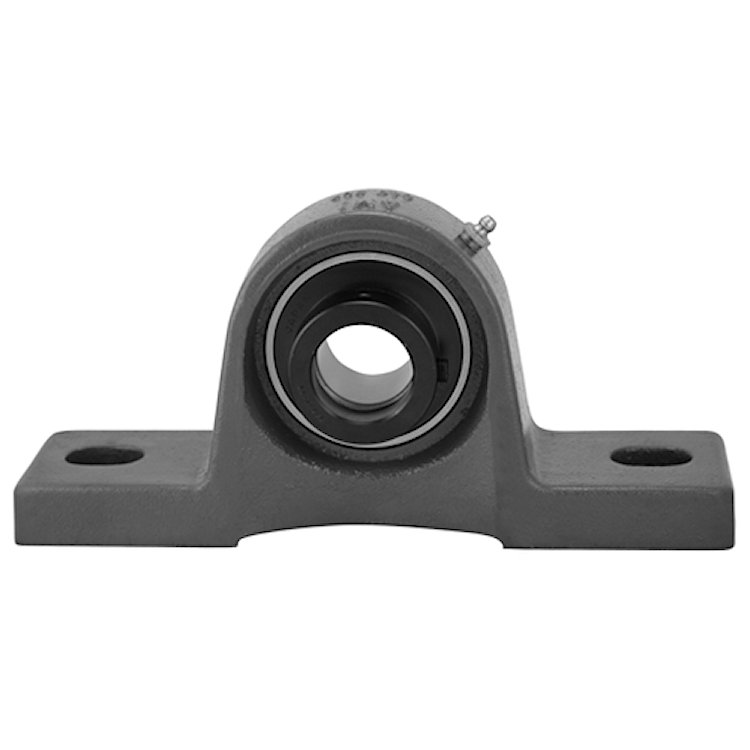

UGSAO307-23 AMI

1-7/16" HEAVY ECCENTRIC COLL PILLOW BLOCK
Item #: A85KX93990
Manufacturer: ASAHI - MOLINE INC.
188.22
Each
Quantity:
Quantity Price
1 188.22
A85KX93990

Mounted PB Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Pillow block
Shaft Size
1.4375
Locking Device
Eccentric Collar
Shaft Centerline
2-3/4"
Insert No.
UG307-23
Overall length:
10-5/8"
Bolt Center Dim.
7.789" to 8.743"
Overall Height
4-13/16"
Seal Style
Contact with Slinger
LTB
2.031"
Housing Config
Pillow Block
Roller Configuration
Ball Bearing
Duty Type
Heavy Duty
Dynamic Load
7530 lbf
Static Load
4320 lbf
Bolt Size
5/8
Base Width
2-3/4"
Bearing Housing Material
Cast Iron
Weight
8.84 LB
