Home  >  Bearings  >  Flange Units  >  Ball Bearing  >  3 Bolt Flange  > UEMFB208-24MZ20 AMI

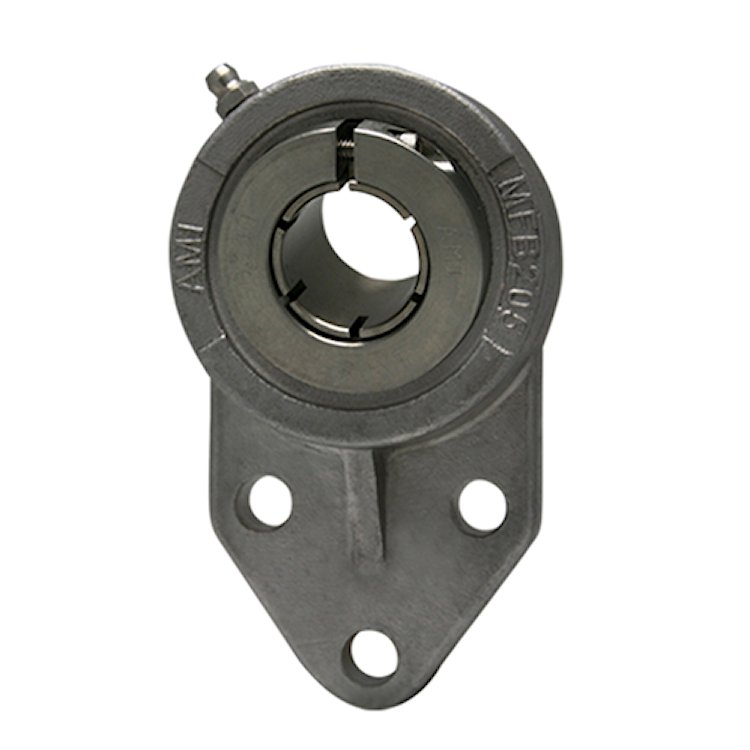

UEMFB208-24MZ20 AMI

1-1/2" KANIGEN ACCU-LOC STAINLESS 3-BOLT FLANGE
Item #: A85KX85220
Manufacturer: ASAHI - MOLINE INC.
390.15
Each
Quantity:
Quantity Price
1 390.15
A85KX85220

Mounted 2 and 4 Bolt Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Three Bolt Flange
Shaft Size
1.5
Locking Device
Accu-Loc
Bolt Center
1-31/32"
Expansion Type
NON-EXP
Insert No.
UE208-24MZ20
Overall length:
6-15/32"
Overall Height
2-1/16"
Base Height
5/8"
Seal Style
Contact with Slinger
LTB
1.976"
Housing Config
Three Bolt Flange
Roller Configuration
Ball Bearing
Duty Type
Normal Duty
Dynamic Load
6590 lbf
Static Load
4030 lbf
Bolt Size
7/16
Bearing Housing Material
304 Cast Stainless Steel
Weight
4.36 LB
