Home  >  Bearings  >  Flange Units  >  Ball Bearing  >  Thermoplastic Housing  > UCFBL201-8MZ20CEB AMI

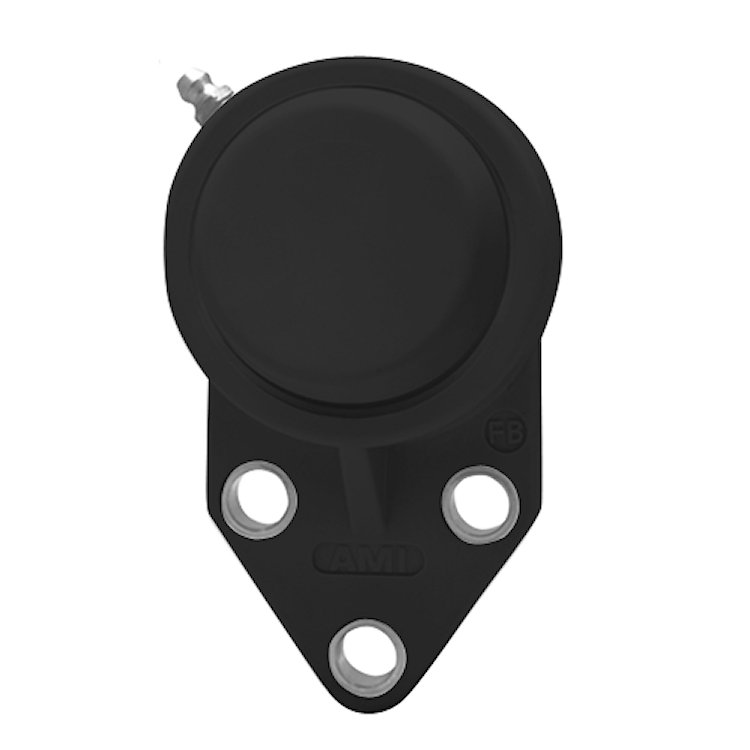

UCFBL201-8MZ20CEB AMI

1/2" KANIGEN SET SCREW BLACK 3-BOLT FLANGE CLS COV
Item #: A85KX59215
Manufacturer: ASAHI - MOLINE INC.
105.39
Each
Quantity:
Quantity Price
1 105.39
A85KX59215

Mounted 2 and 4 Bolt Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Three Bolt Flange
Shaft Size
0.5
Locking Device
Set Screw
Bolt Center
1-1/2"
Expansion Type
NON-EXP
Insert No.
UC201-8MZ20
Overall length:
4-1/4"
Overall Height
1-21/64"
Base Height
29/64"
Seal Style
Contact with Slinger
LTB
1.220"
Housing Config
Three Bolt Flange
Roller Configuration
Ball Bearing
Duty Type
Normal Duty
Dynamic Load
2890 lbf
Static Load
1500 lbf
Bolt Size
3/8
Bearing Housing Material
PBT Thermoplastic
Weight
0.65 LB
