Home  >  Bearings  >  Flange Units  >  Ball Bearing  >  Thermoplastic Housing  > MUCFPL201-8RFCW AMI

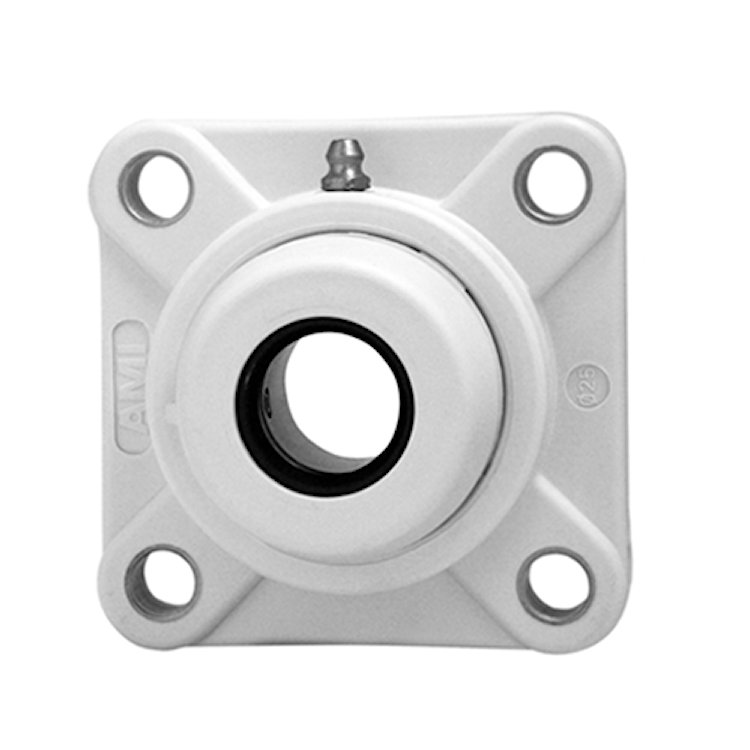

MUCFPL201-8RFCW AMI

1/2" STAINLESS SET SCREW RF WHITE 4-BOLT FLANGE O
Item #: A85KX57015
Manufacturer: ASAHI - MOLINE INC.
162.41
Each
Quantity:
Quantity Price
1 162.41
A85KX57015

Mounted 2 and 4 Bolt Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Four Bolt Flange
Shaft Size
0.5
Locking Device
Set Screw
Bolt Center
2-1/2"
Expansion Type
NON-EXP
Insert No.
MUC201-8RF
Overall length:
3-3/8"
Overall Height
1-27/64"
Base Height
17/32"
Seal Style
Dual Lip with Slinger
LTB
1.220"
Housing Config
Four Bolt Flange
Roller Configuration
Ball Bearing
Duty Type
Normal Duty
Dynamic Load
2450 lbf
Static Load
1190 lbf
Bolt Size
3/8"
Bearing Housing Material
PBT Thermoplastic
Weight
0.78 LB
