Home  >  Bearings  >  Flange Units  >  Ball Bearing  >  Thermoplastic Housing  > MUCFFPL205-16W AMI

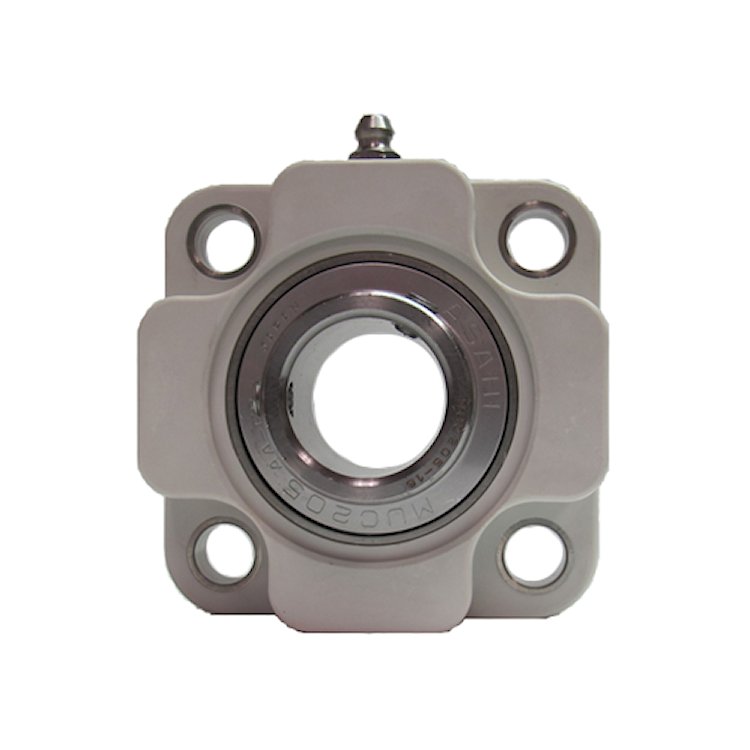

MUCFFPL205-16W AMI

1" STAINLESS SET SCREW WHITE 4-BOLT FLANGE
Item #: A85KX55600
Manufacturer: ASAHI - MOLINE INC.
147.81
Each
Quantity:
Quantity Price
1 147.81
A85KX55600

Mounted 2 and 4 Bolt Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Four Bolt Flange
Shaft Size
1.0000
Locking Device
Set Screw
Bolt Center
2-1/4"
Expansion Type
NON-EXP
Insert No.
MUC205-16
Overall length:
3-1/8"
Seal Style
Contact with Slinger
LTB
1.339"
Housing Config
Four Bolt Flange
Roller Configuration
Ball Bearing
Duty Type
Normal Duty
Dynamic Load
2680 lbf
Static Load
1420 lbf
Bearing Housing Material
PBT Thermoplastic
Weight
0.66 LB
