Home  >  Bearings  >  Flange Units  >  Ball Bearing  >  Corrosive Resistance  > MUCFC206NP AMI

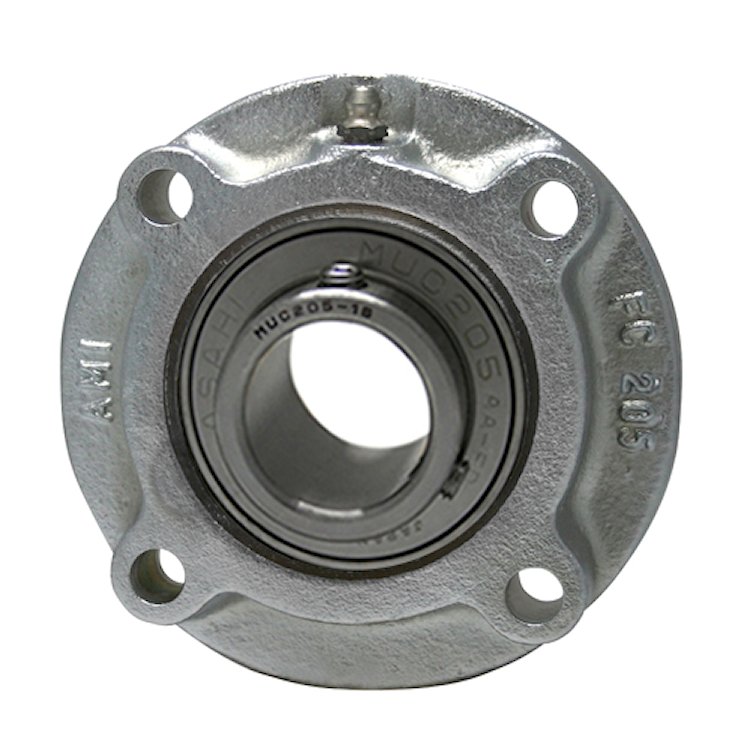

MUCFC206NP AMI

30MM STAINLESS SET SCREW NICKEL PILOTED FLANGE CA
Item #: A85KX51420
Manufacturer: ASAHI - MOLINE INC.
170.05
Each
Quantity:
Quantity Price
1 170.05
A85KX51420

Mounted 2 and 4 Bolt Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Piloted Flange
Shaft Size
30 mm
Locking Device
Set Screw
Bolt Center
70.7 mm
Bolt Circle
100 mm
Expansion Type
NON-EXP
Insert No.
MUC206
Overall length:
125 mm
Overall Height
32.2 MM
Base Height
23 MM
Seal Style
Contact with Slinger
LTB
38.1 mm
Housing Config
Piloted Flange
Roller Configuration
Ball Bearing
Duty Type
Normal Duty
Dynamic Load
1700 kgf
Static Load
920 kgf
Bolt Size
M10
Bearing Housing Material
Cast Iron - Nickel Protection
Weight
2.58 LB
