Home  >  Bearings  >  Flange Units  >  Ball Bearing  >  3 Bolt Flange  > UCMFB208MZ2RF AMI

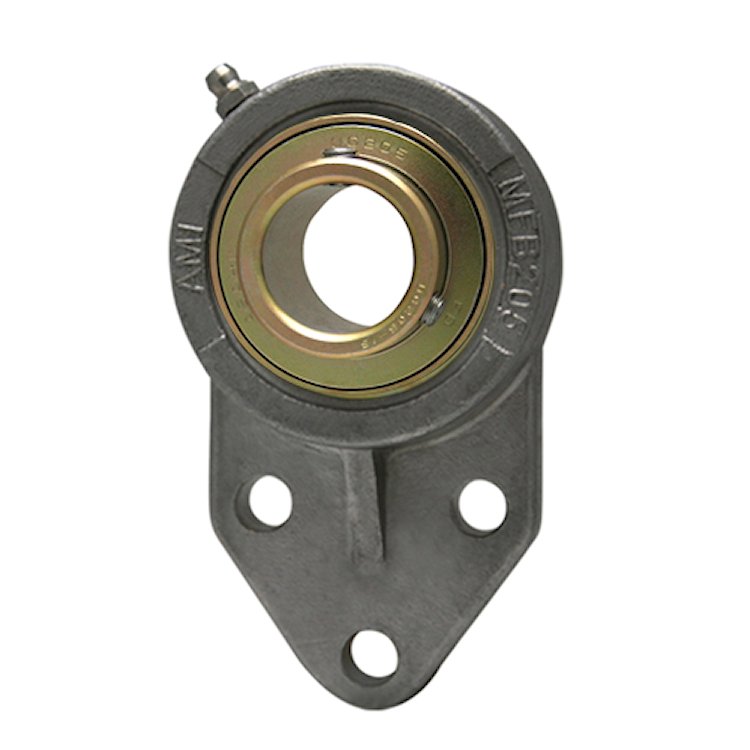

UCMFB208MZ2RF AMI

40MM ZINC SET SCREW RF STAINLESS 3-BOLT FLANGE
Item #: A85KX12985
Manufacturer: ASAHI - MOLINE INC.
226.94
Each
Quantity:
Quantity Price
1 226.94
A85KX12985

Mounted 2 and 4 Bolt Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Three Bolt Flange
Shaft Size
40 mm
Locking Device
Set Screw
Expansion Type
NON-EXP
Insert No.
UC208MZ2RF
Overall Height
164 mm
Seal Style
Dual Lip with Slinger
LTB
49.2 mm
Housing Config
Three Bolt Flange
Roller Configuration
Ball Bearing
Duty Type
Normal Duty
Dynamic Load
2990 kgf
Static Load
1830 kgf
Bolt Size
M10
Bearing Housing Material
304 Cast Stainless Steel
Weight
4.02 LB
