Home  >  Bearings  >  Flange Units  >  Ball Bearing  >  Corrosive Resistance  > UCFC201-8NPMZ2 AMI

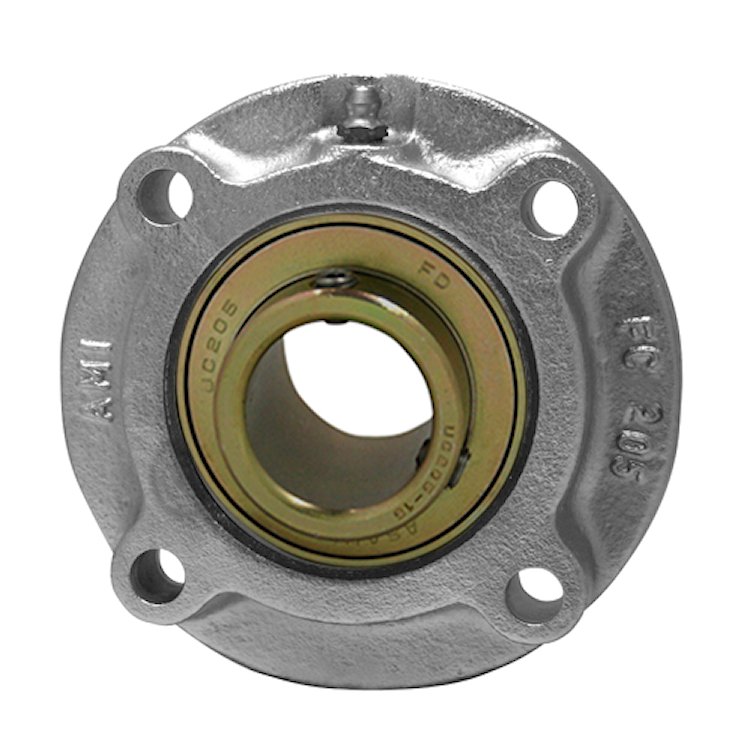

UCFC201-8NPMZ2 AMI

1/2" ZINC WIDE SET SCREW NICKEL PILOTED FLANGE CA
Item #: A85KX11336
Manufacturer: ASAHI - MOLINE INC.
83.03
Each
Quantity:
Quantity Price
1 83.03
A85KX11336

Mounted 2 and 4 Bolt Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Piloted Flange
Shaft Size
0.5
Locking Device
Set Screw
Bolt Center
3-5/64"
Expansion Type
NON-EXP
Insert No.
UC201-8MZ2
Overall length:
3-15/16"
Seal Style
Contact with Slinger
LTB
1.220"
Housing Config
Piloted Flange
Roller Configuration
Ball Bearing
Duty Type
Normal Duty
Dynamic Load
2890 lbf
Static Load
1500 lbf
Bolt Size
3/8
Bearing Housing Material
Cast Iron - Nickel Protection
Weight
1.6 LB
