Home  >  Bearings  >  Flange Units  >  Ball Bearing  >  4 Bolt Medium Duty  > UCF305-16 AMI

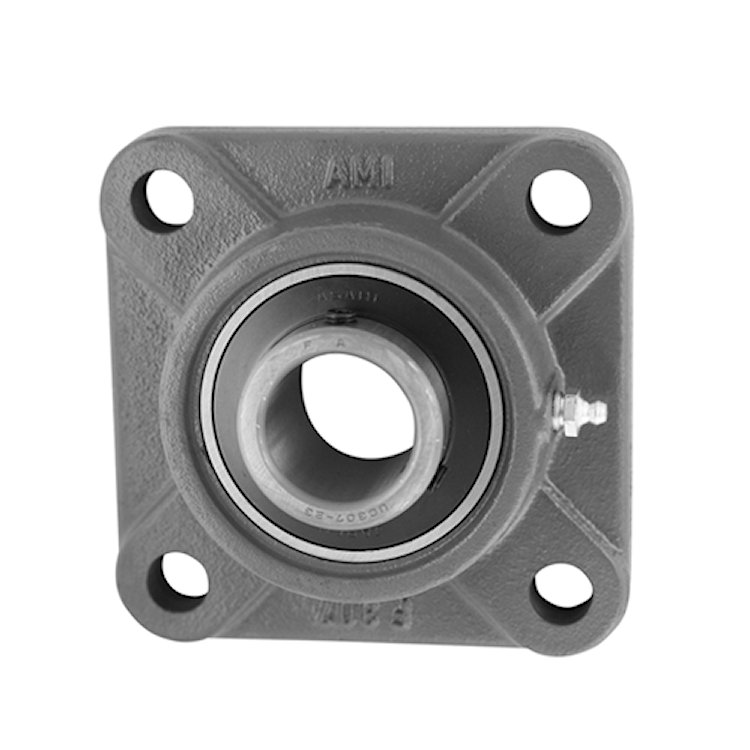

UCF305-16 AMI

1" HEAVY SET SCREW 4-BOLT FLANGE
Item #: A85KX10350
Manufacturer: ASAHI - MOLINE INC.
68.52
Each
Quantity:
Quantity Price
1 68.52
A85KX10350

Mounted 2 and 4 Bolt Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Four Bolt Flange
Shaft Size
1.0000
Locking Device
Set Screw
Bolt Center
3-5/32"
Expansion Type
NON-EXP
Insert No.
UC305-16
Overall length:
4-5/16"
Overall Height
1.535"
Base Height
1/2"
Seal Style
Contact with Slinger
LTB
1.496"
Housing Config
Four Bolt Flange
Roller Configuration
Ball Bearing
Duty Type
Heavy Duty
Dynamic Load
4780 lbf
Static Load
2450 lbf
Bolt Size
1/2"
Bearing Housing Material
Cast Iron
Weight
1.92 LB
