Home  >  Bearings  >  Flange Units  >  Ball Bearing  >  4 Bolt Medium Duty  > UCFX12-38 AMI

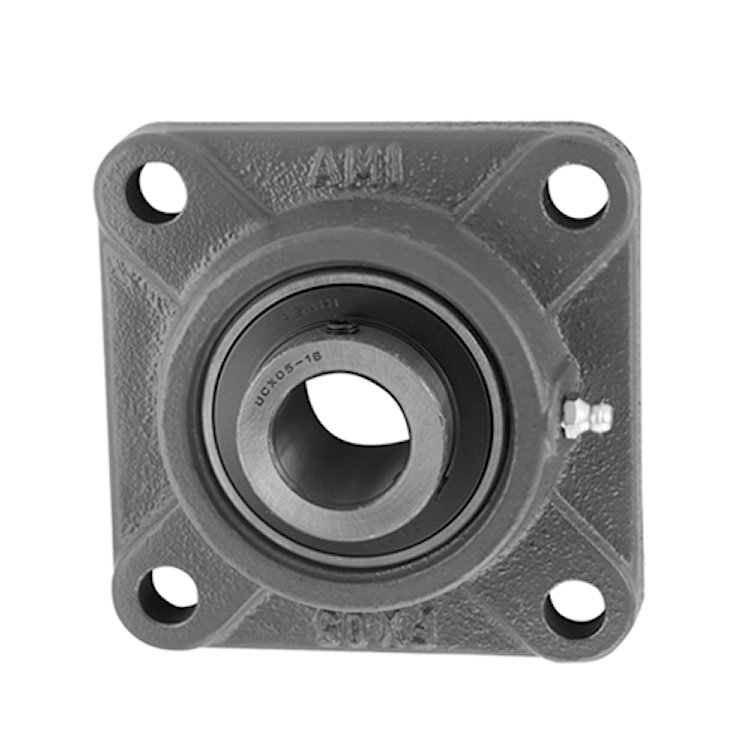

UCFX12-38 AMI

2-3/8" MEDIUM SET SCREW 4-BOLT FLANGE
Item #: A85KX09600
Manufacturer: ASAHI - MOLINE INC.
209.91
Each
Quantity:
Quantity Price
1 209.91
A85KX09600

Mounted 2 and 4 Bolt Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Four Bolt Flange
Shaft Size
2.375
Locking Device
Set Screw
Bolt Center
5-7/8"
Expansion Type
NON-EXP
Insert No.
UCX12-38
Overall length:
7-3/8"
Overall Height
2.902"
Base Height
13/16"
Seal Style
Contact with Slinger
LTB
2.563"
Housing Config
Four Bolt Flange
Roller Configuration
Ball Bearing
Duty Type
Medium Duty
Dynamic Load
12900 lbf
Static Load
9000 lbf
Bolt Size
5/8"
Bearing Housing Material
Cast Iron
Weight
15.76 LB
