Home  >  Bearings  >  Flange Units  >  Ball Bearing  >  Corrosive Resistance  > MUCFB203NPRF AMI

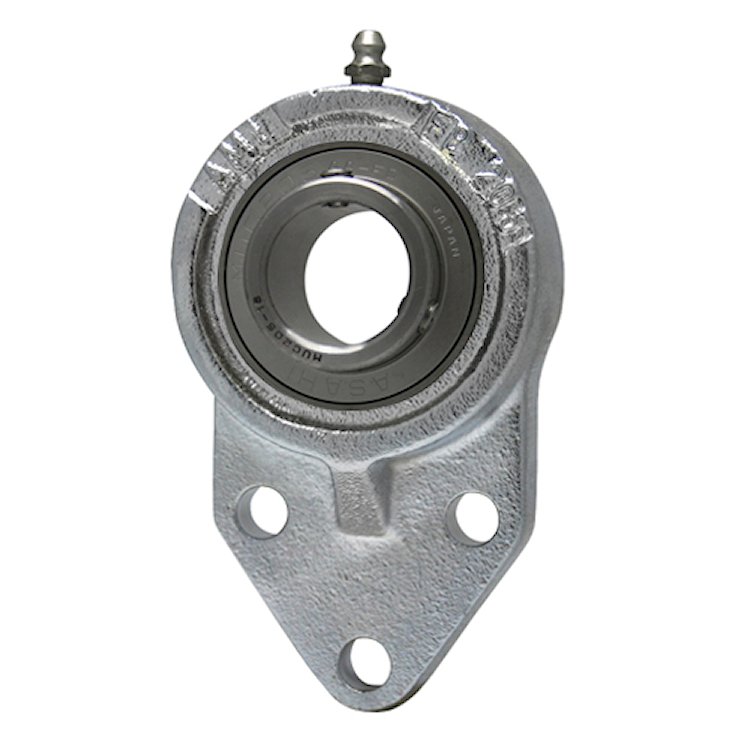

MUCFB203NPRF AMI

17MM STAINLESS SET SCREW RF NICKEL 3-BOLT FLANGE
Item #: A85KX00633
Manufacturer: ASAHI - MOLINE INC.
143.23
Each
Quantity:
Quantity Price
1 143.23
A85KX00633

Mounted 2 and 4 Bolt Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Three Bolt Flange
Shaft Size
17 mm
Locking Device
Set Screw
Bolt Center
38.1 mm
Expansion Type
NON-EXP
Insert No.
MUC203RF
Overall length:
108 mm
Overall Height
34.2 MM
Base Height
8 MM
Seal Style
Dual Lip with Slinger
LTB
31 mm
Housing Config
Three Bolt Flange
Roller Configuration
Ball Bearing
Duty Type
Normal Duty
Dynamic Load
1110 kgf
Static Load
540 kgf
Bolt Size
M8
Bearing Housing Material
Cast Iron - Nickel Protection
Weight
1.2 LB
