Home  >  Bearings  >  Flange Units  >  Ball Bearing  >  Corrosive Resistance  > MUCF212-39NP AMI

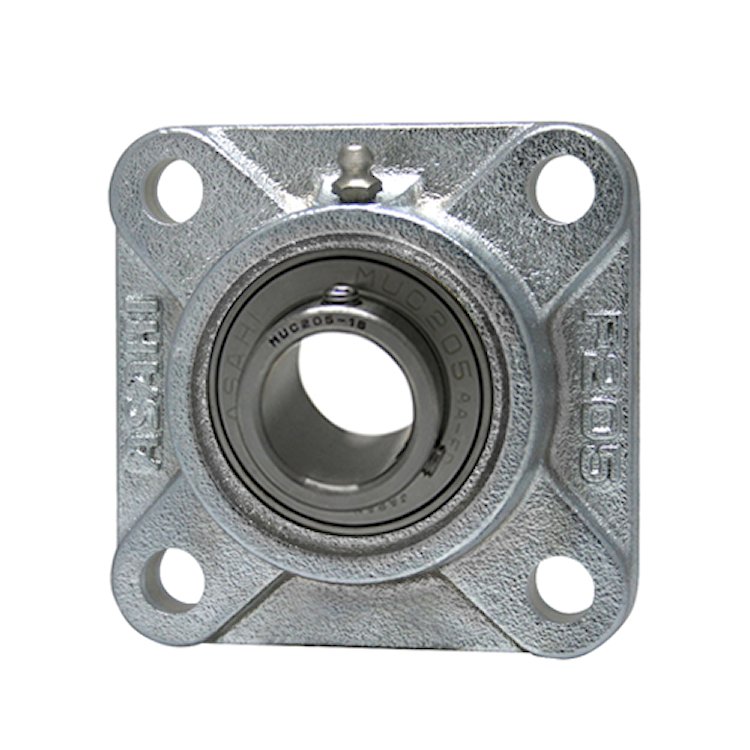

MUCF212-39NP AMI

2-7/16" STAINLESS SET SCREW NICKEL 4-BOLT FLANGE
Item #: A85KX00530
Manufacturer: ASAHI - MOLINE INC.
517.47
Each
Quantity:
Quantity Price
1 517.47
A85KX00530

Mounted 2 and 4 Bolt Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Four Bolt Flange
Shaft Size
2.4375
Locking Device
Set Screw
Bolt Center
5-5/8"
Bolt Circle
ASAHI - MOLINE INC.
Expansion Type
NON-EXP
Insert No.
MUC212-39
Overall length:
6-7/8"
Overall Height
2-45/64"
Base Height
25/32"
Seal Style
Contact with Slinger
LTB
2.563"
Housing Config
Four Bolt Flange
Roller Configuration
Ball Bearing
Duty Type
Normal Duty
Dynamic Load
10030 lbf
Static Load
6500 lbf
Bolt Size
5/8"
Bearing Housing Material
Cast Iron - Nickel Protection
Weight
9.02 LB
