Home  >  Bearings  >  Pillow Blocks  >  Ball Bearing  >  Tapped Base  > UCTB209 AMI

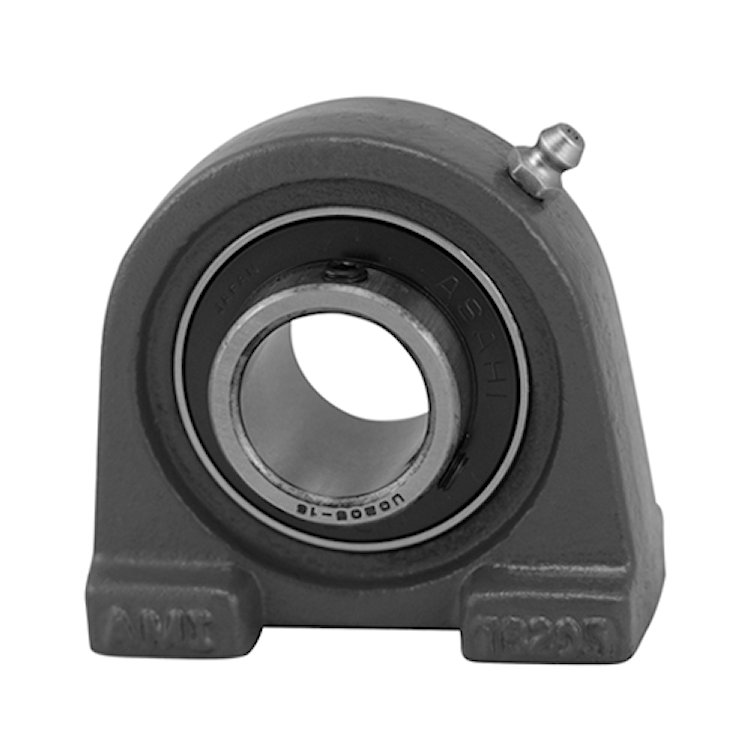

UCTB209 AMI

45MM WIDE SET SCREW TAPPED BASE PILLOW BLOCK
Item #: A85KT12728
Manufacturer: ASAHI - MOLINE INC.
65.28
Each
Quantity:
Quantity Price
1 65.28
A85KT12728

Mounted PB Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Tapped Base Pillow Block
Shaft Size
45 mm
Locking Device
Set Screw
Shaft Centerline
54.0 mm
Insert No.
UC209
Overall length:
127.0 mm
Bolt Center Dim.
95.3 mm
Overall Height
108.0 mm
Seal Style
Contact with Slinger
LTB
49.2 mm
Roller Configuration
Ball Bearing
Duty Type
Normal Duty
Dynamic Load
3350 kgf
Static Load
2090 kgf
Bolt Size
1/2-13
Base Width
50.8 mm
Bearing Housing Material
Cast Iron
Weight
4.14 LB
