Home  >  Bearings  >  Take Up Units  >  Ball Bearing  >  Side Mount  > UCT306-19 AMI

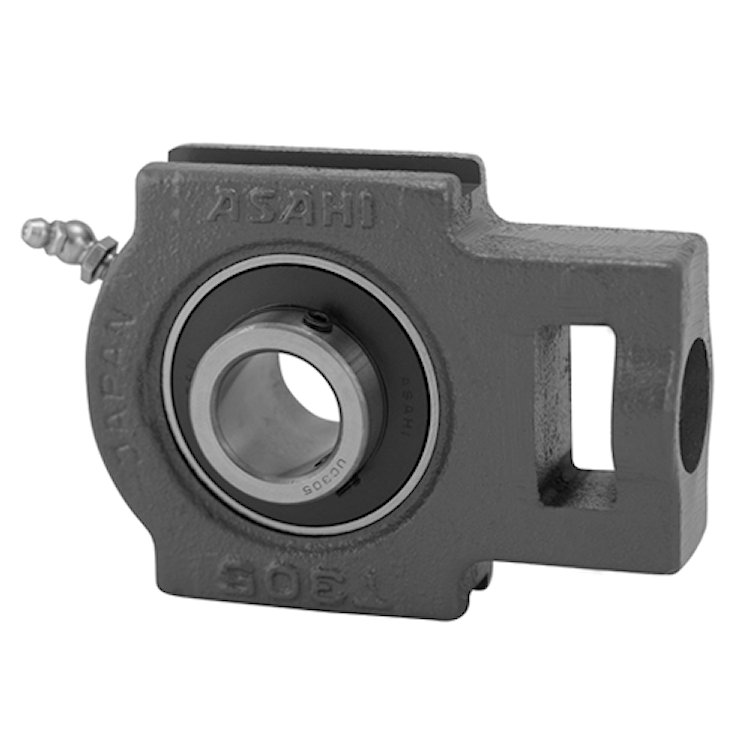

UCT306-19 AMI

1-3/16" HEAVY SET SCREW TAKE-UP
Item #: A85KT08516
Manufacturer: ASAHI - MOLINE INC.
96.26
Each
Quantity:
Quantity Price
1 96.26
A85KT08516

Mounted TU Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Take Up
Shaft Size
1-3/16"
Locking Device
Set Screw
Bolt Center
3-11/32"
Insert No.
UC306-19
Overall length:
5-25/64"
Overall Height
3-15/16"
Seal Style
Contact with Slinger
LTB
1.693"
Housing Config
Take Up
Duty Type
Heavy Duty
Slot Size
5/8"
Dynamic Load
6020 lbf
Static Load
3370 lbf
Bearing Housing Material
Cast Iron
Weight
3.92 LB
