Home  >  Bearings  >  Take Up Units  >  Ball Bearing  >  Side Mount  > UCT205CE AMI

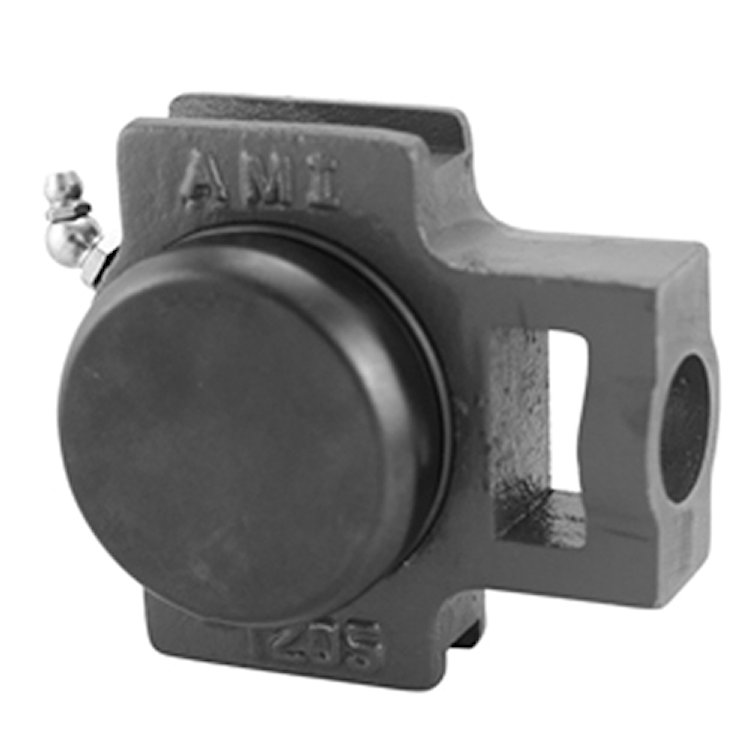

UCT205CE AMI

25MM WIDE SET SCREW TAKE-UP OPN/CLS COV
Item #: A85KT06390
Manufacturer: ASAHI - MOLINE INC.
69.01
Each
Quantity:
Quantity Price
1 69.01
A85KT06390

Mounted TU Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Take Up
Shaft Size
25 mm
Locking Device
Set Screw
Bolt Center
62 mm
Insert No.
UC205
Overall length:
97 mm
Overall Height
89 mm
Seal Style
Contact with Slinger
LTB
34 mm
Housing Config
Take Up
Duty Type
Normal Duty
Slot Size
12 mm
Dynamic Load
1430 kgf
Static Load
800 kgf
Bearing Housing Material
Cast Iron
Weight
1.9 LB
