Home  >  Bearings  >  Pillow Blocks  >  Ball Bearing  >  Hanger Style  > UCECH201-8NPMZ2 AMI

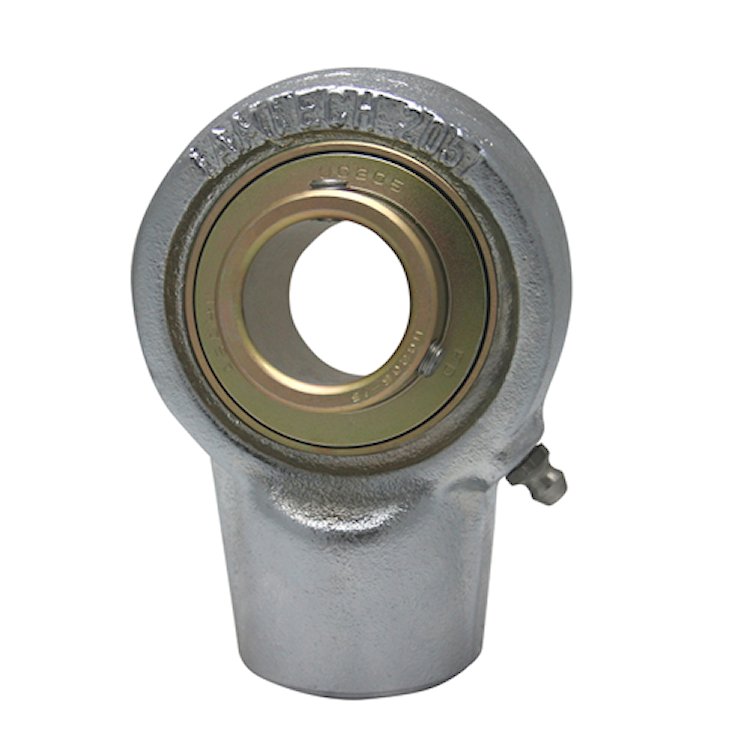

UCECH201-8NPMZ2 AMI

1/2" ZINC WIDE SET SCREW NICKEL HANGER BEARING
Item #: A85DP04859
Manufacturer: ASAHI - MOLINE INC.
74.11
Each
Quantity:
Quantity Price
1 74.11
A85DP04859

Mounted PB Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Conveyor Hanger Units
Shaft Size
0.5
Locking Device
Set Screw
Shaft Centerline
2-1/2"
Insert No.
UC201-8MZ2
Overall length:
3-7/8"
Overall Height
3-7/8"
Base Height
Contact with Slinger
Seal Style
Contact with Slinger
LTB
1.220"
Housing Config
Mounted TU Type
Roller Configuration
Ball Bearing
Duty Type
Normal Duty
Dynamic Load
2890 lbf
Static Load
1500 lbf
Bolt Size
PF3/4
Base Width
1-9/16"
Bearing Housing Material
Ductile Iron - Nickel Protection
Weight
1.7 LB
