Home  >  Power Transmission  >  Electric Motors and Controls  >  AC/DC Motors  > 103713.00 LEESON

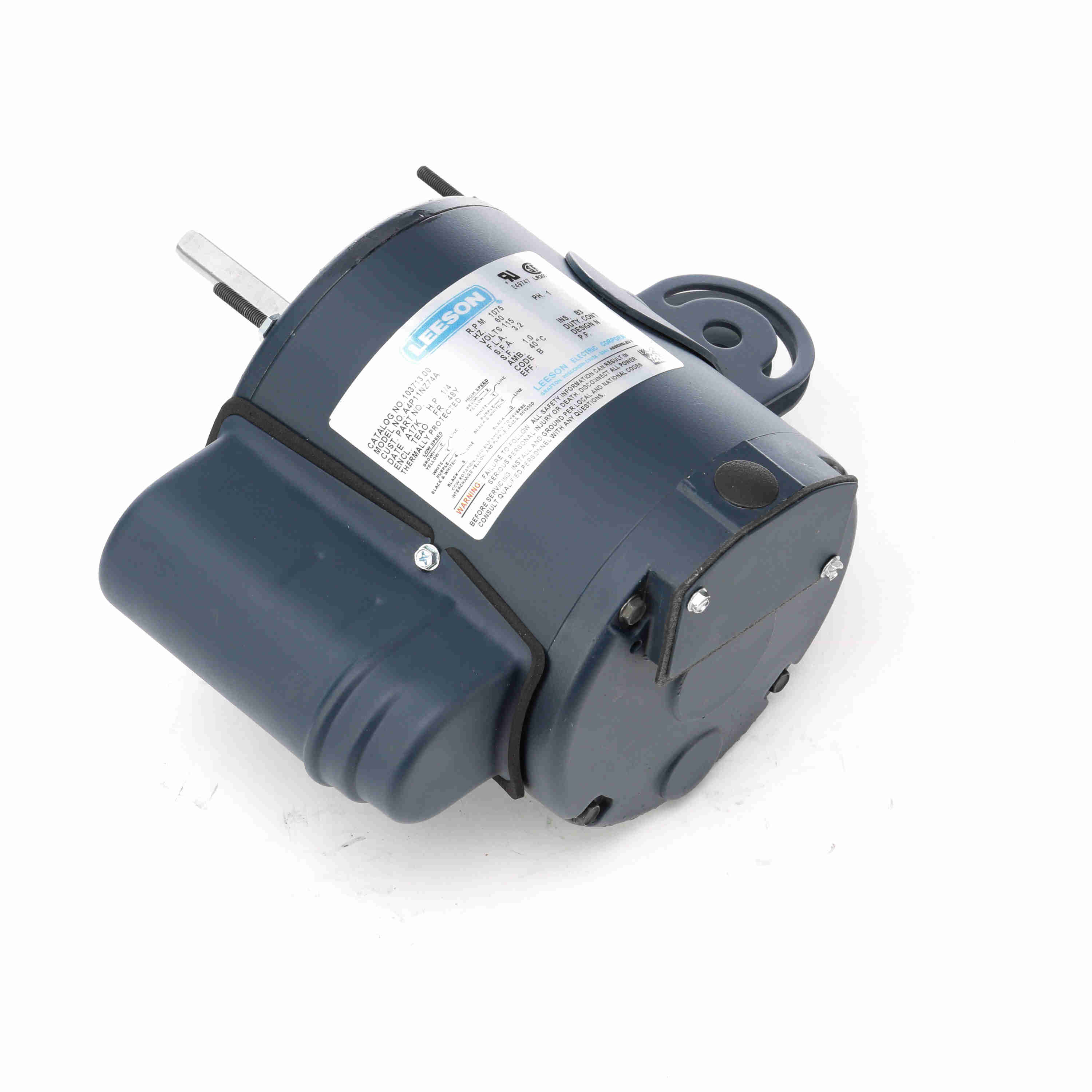

103713.00 LEESON

0.25 HP 2 speed Ped Fan HVAC, 1 Ph, 1200/1200 RPM, 115 V, 48YZ Frame, TEAO
Item #: L24OF55460
Manufacturer: LEESON ELECTRIC CORP.
344.00
Each
Quantity:
Quantity Price
1 344.00
L24OF55460

Electric Motor Type

Manufacturer
LEESON ELECTRIC CORP.
Motor Phase
1
Horsepower
0.25
RPM
1075
Motor Voltage
115
Frame Size
48
Enclosure Type
TEAO
Frequency Rating
60
Mounting Type
Round - Swing Arm
Duty
Continuous
Amp Load
3.2
Full Load Current
3.2
Efficiency
59.5
Shaft Diam
0.625
Overall length:
15.50
NEMA
15.50
Service Factor
1
Bearing Category
Ball
Insulation Class
B
IP Rating
43
Weight
17.00
Industry Standard
UL
