Home  >  Power Transmission  >  Electric Motors and Controls  >  AC/DC Motors  > 122240.00 LESSON

122240.00 LESSON

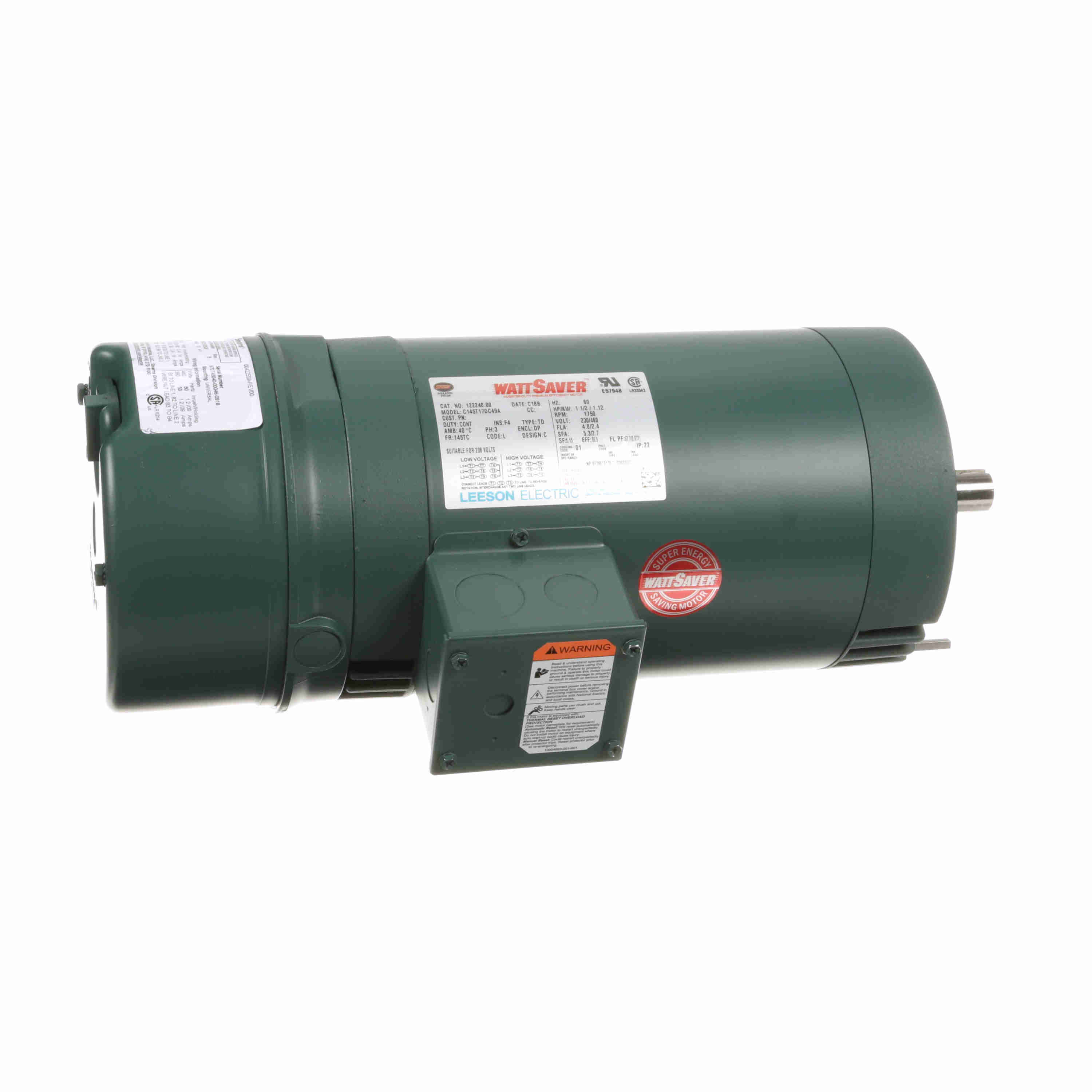

1.50 HP Brake Motor, 3 phase, 1800 RPM, 230/460 V, 145TC Frame, ODP
Item #: L24OF418591
Manufacturer: LEESON ELECTRIC CORP.
1848.00
Each
Quantity:
Quantity Price
1 1848.00
L24OF418591

Electric Motor Type

Manufacturer
LEESON ELECTRIC CORP.
Motor Phase
3
Horsepower
1.50
RPM
1750
Motor Voltage
230/460
Frame Size
145
Enclosure Type
ODP
Frequency Rating
60
Mounting Type
Round
Duty
Continuous
Amp Load
4.8/2.4
Full Load Current
4.8/2.4
Efficiency
86.5
Shaft Diam
0.875
Overall length:
19.50
NEMA
19.50
Service Factor
1.15
Bearing Category
Ball
Insulation Class
F
IP Rating
22
Weight
47.00
Industry Standard
UL
