Home  >  Bearings  >  Pillow Blocks  >  Ball Bearing  >  Standard Duty  > BPW204-12 AMI

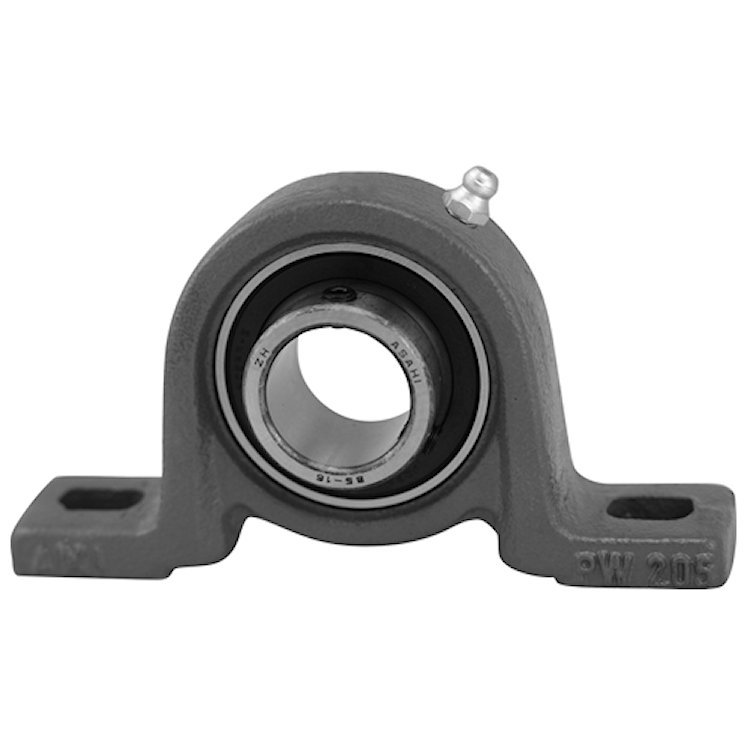

BPW204-12 AMI

3/4" NARROW SET SCREW MALLEABLE PILLOW BLOCK
Item #: A85KZ16400
Manufacturer: ASAHI - MOLINE INC.
53.7500
Each
Quantity:
Quantity Price
1 33.91
A85KZ16300

Mounted PB Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Pillow block
Shaft Size
0.625
Locking Device
Set Screw
Shaft Centerline
1-3/16"
Insert No.
B2-10
Overall length:
4-1/2"
Bolt Center Dim.
3-3/16" to 3-11/16"
Overall Height
2-11/64"
Seal Style
Contact
LTB
0.866"
Housing Config
Pillow Block
Roller Configuration
Ball Bearing
Duty Type
Normal Duty
Dynamic Load
2150 lbf
Static Load
1080 lbf
Bolt Size
3/8
Base Width
1"
Bearing Housing Material
Malleable Iron
Weight
0.6 LB
