Home  >  Bearings  >  Flange Units  >  Ball Bearing  >  4 Bolt Medium Duty  > UKF320+HE2320 AMI

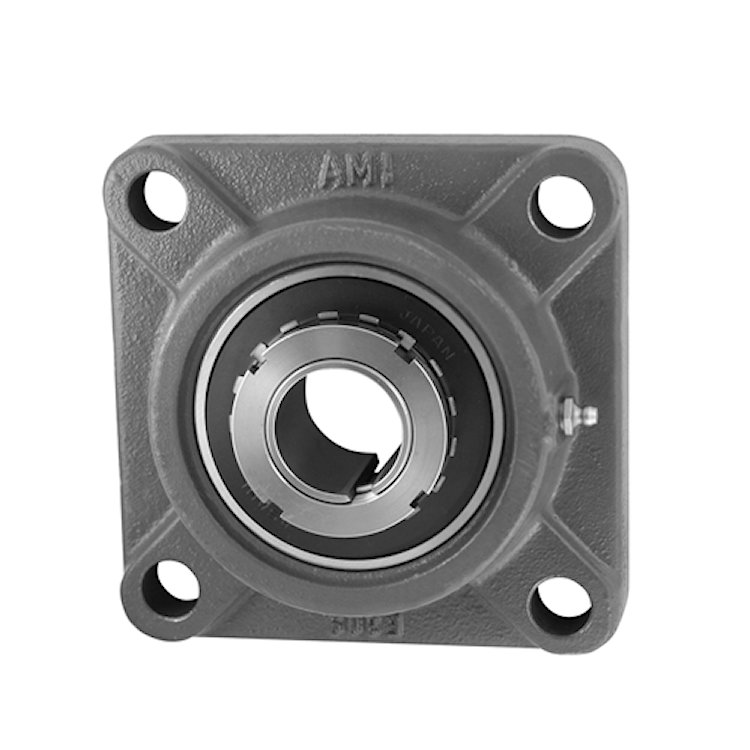

UKF320+HE2320 AMI

3-1/2" HEAVY WIDE ADAPTER 4-BOLT FLANGE
Item #: A85KX93920
Manufacturer: ASAHI - MOLINE INC.
1399.15
Each
Quantity:
Quantity Price
1 1399.15
A85KX93920

Mounted 2 and 4 Bolt Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Four Bolt Flange
Shaft Size
3.5000
Locking Device
Adapter Sleeve
Bolt Center
9-17/32"
Expansion Type
NON-EXP
Insert No.
UK320+HE2320
Overall length:
12-3/16"
Overall Height
4.528"
Base Height
1-1/4"
Seal Style
Contact with Slinger
LTB
3.819"
Housing Config
Four Bolt Flange
Roller Configuration
Ball Bearing
Duty Type
Heavy Duty
Dynamic Load
39000 lbf
Static Load
31500 lbf
Bolt Size
1-1/4"
Bearing Housing Material
Cast Iron
Weight
64.96 LB
