Home  >  Bearings  >  Flange Units  >  Ball Bearing  >  4 Bolt Standard Duty  > UKF217+HE2317 AMI

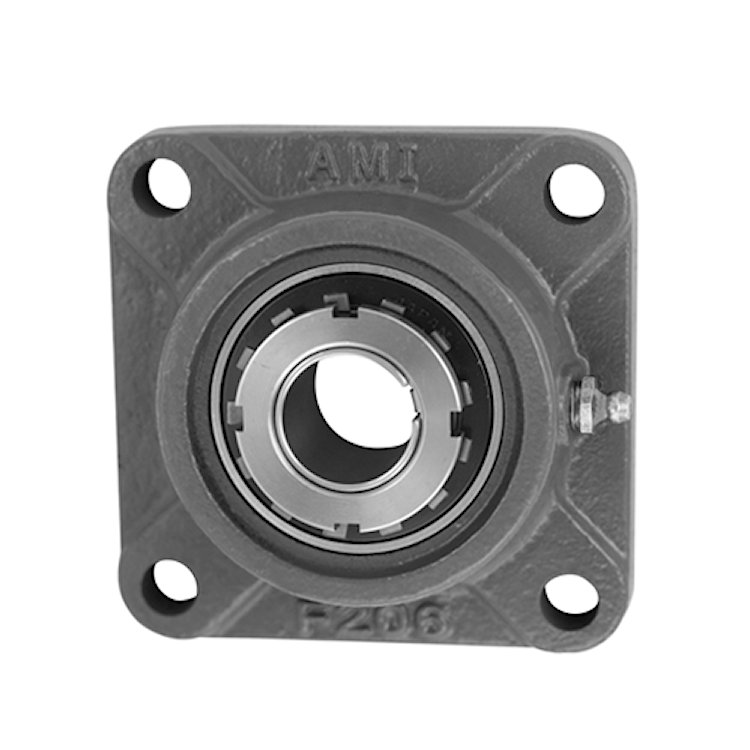

UKF217+HE2317 AMI

3" NORMAL WIDE ADAPTER 4-BOLT FLANGE
Item #: A85KX93585
Manufacturer: ASAHI - MOLINE INC.
397.00
Each
Quantity:
Quantity Price
1 397.00
A85KX93585

Mounted 2 and 4 Bolt Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Four Bolt Flange
Shaft Size
3.0000
Locking Device
Adapter Sleeve
Bolt Center
6-7/8"
Expansion Type
NON-EXP
Insert No.
UK217+HE2317
Overall length:
8-11/16"
Overall Height
3.032"
Base Height
1-1/32"
Seal Style
Contact with Slinger
LTB
3.228"
Housing Config
Four Bolt Flange
Roller Configuration
Ball Bearing
Duty Type
Normal Duty
Dynamic Load
18700 lbf
Static Load
13900 lbf
Bolt Size
7/8"
Bearing Housing Material
Cast Iron
Weight
21.29 LB
