Home  >  Bearings  >  Flange Units  >  Ball Bearing  >  Piloted Flange  > UGME205 AMI

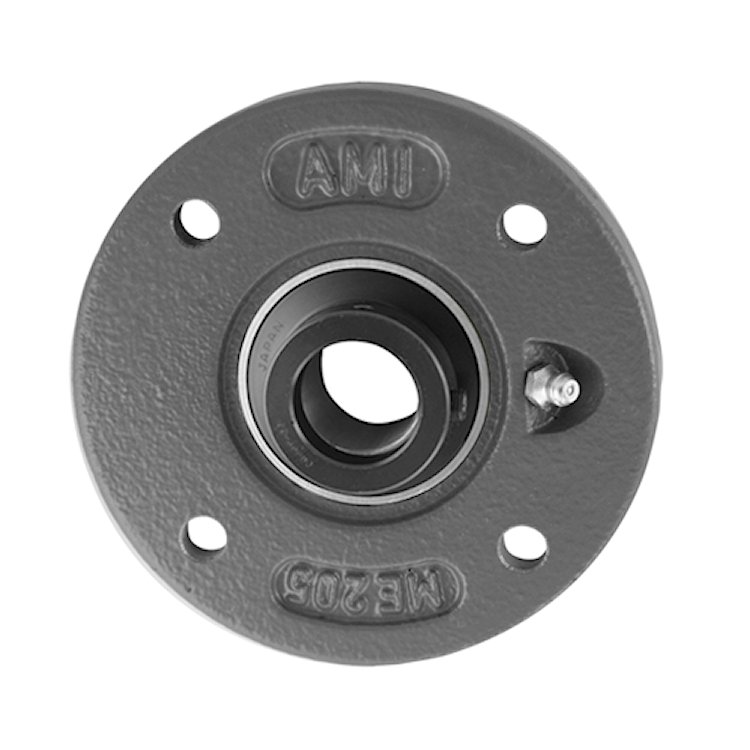

UGME205 AMI

25MM WIDE ECCENTRIC COLLAR PILOTED FLANGE CARTRID
Item #: A85KX89880
Manufacturer: ASAHI - MOLINE INC.
83.80
Each
Quantity:
Quantity Price
1 83.80
A85KX89880

Mounted 2 and 4 Bolt Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Piloted Flange
Shaft Size
25 mm
Locking Device
Eccentric Collar
Bolt Center
63.6 mm
Bolt Circle
90 mm
Expansion Type
NON-EXP
Insert No.
UG205
Overall length:
115 mm
Overall Height
24.4 MM
Base Height
9 MM
Seal Style
Contact with Slinger
LTB
44.4 mm
Housing Config
Piloted Flange
Roller Configuration
Ball Bearing
Duty Type
Normal Duty
Dynamic Load
1430 kgf
Static Load
800 kgf
Bolt Size
M8
Bearing Housing Material
Cast Iron
Weight
1.80 LB
