Home  >  Bearings  >  Flange Units  >  Ball Bearing  >  4 Bolt Standard Duty  > UEFX06-20 AMI

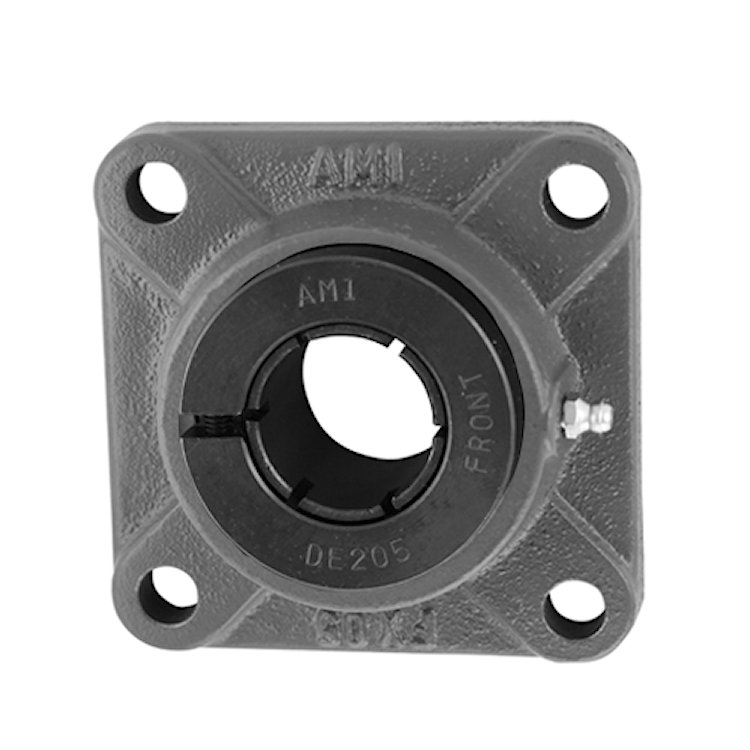

UEFX06-20 AMI

1-1/4" MEDIUM ACCU-LOC 4-BOLT FLANGE
Item #: A85KX82790
Manufacturer: ASAHI - MOLINE INC.
163.91
Each
Quantity:
Quantity Price
1 163.91
A85KX82790

Mounted 2 and 4 Bolt Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Four Bolt Flange
Shaft Size
1.25
Locking Device
Accu-Loc
Bolt Center
3-5/8"
Expansion Type
NON-EXP
Insert No.
UE207-20
Overall length:
4-5/8"
Seal Style
Contact with Slinger
LTB
1-47/64"
Housing Config
Four Bolt Flange
Roller Configuration
Ball Bearing
Duty Type
Normal Duty
Dynamic Load
5820 lbf
Static Load
3460 lbf
Bearing Housing Material
Cast Iron
Weight
3.7 LB
