Home  >  Bearings  >  Flange Units  >  Ball Bearing  >  Thermoplastic Housing  > UEFBL207-23MZ20CEB AMI

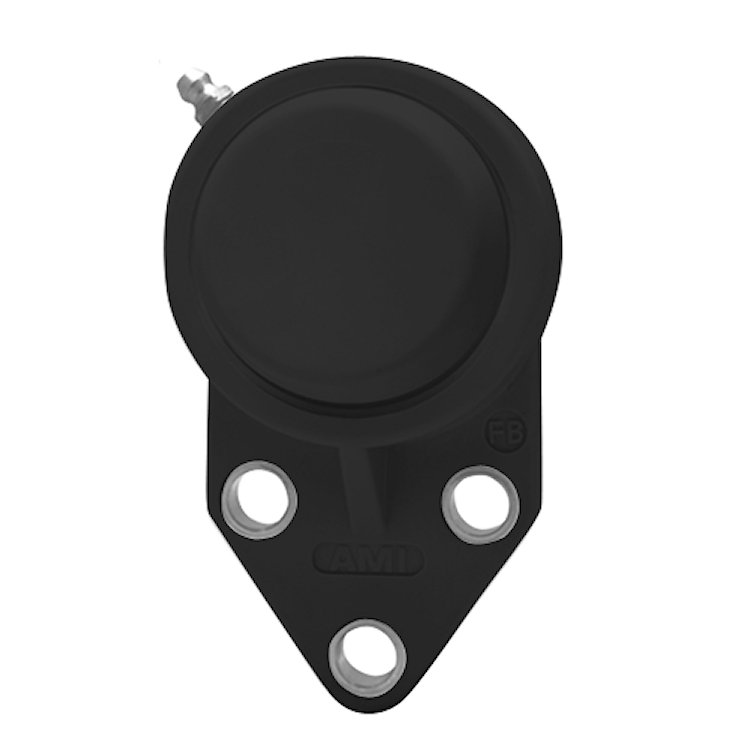

UEFBL207-23MZ20CEB AMI

1-7/16" KANIGEN ACCU-LOC BLACK 3-BOLT FLANGE CLS
Item #: A85KX72460
Manufacturer: ASAHI - MOLINE INC.
251.09
Each
Quantity:
Quantity Price
1 251.09
A85KX72460

Mounted 2 and 4 Bolt Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Three Bolt Flange
Shaft Size
1.4375
Locking Device
Accu-Loc
Bolt Center
2"
Expansion Type
NON-EXP
Insert No.
UE207-23MZ20
Overall length:
6-3/16"
Overall Height
1-57/64"
Base Height
41/64"
Seal Style
Contact with Slinger
LTB
1.728"
Housing Config
Three Bolt Flange
Roller Configuration
Ball Bearing
Duty Type
Normal Duty
Dynamic Load
5820 lbf
Static Load
3460 lbf
Bolt Size
1/2
Bearing Housing Material
PBT Thermoplastic
Weight
1.79 LB
