Home  >  Bearings  >  Flange Units  >  Ball Bearing  >  Thermoplastic Housing  > UEFBL207CEW AMI

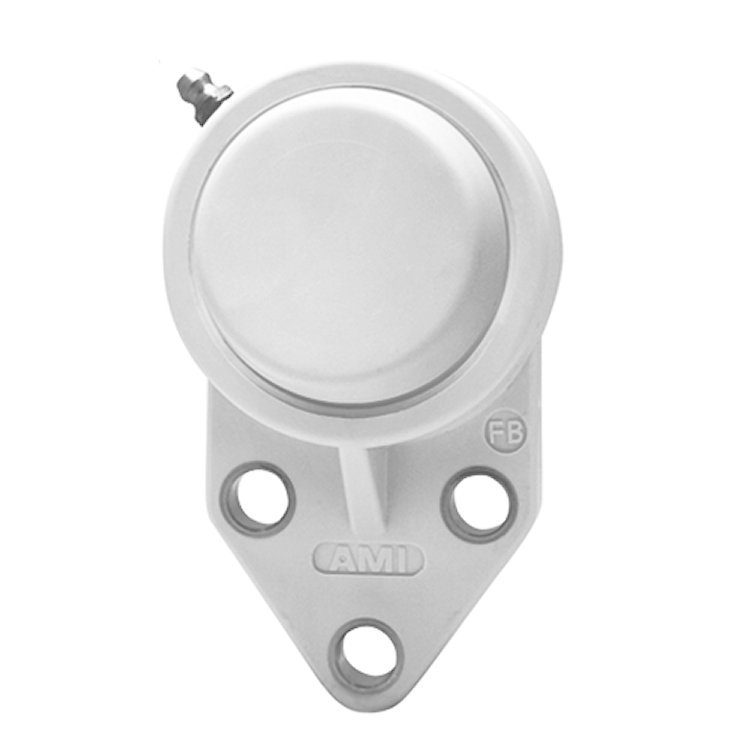

UEFBL207CEW AMI

35MM WIDE ACCU-LOC WHITE 3-BOLT FLANGE CLS COV
Item #: A85KX72290
Manufacturer: ASAHI - MOLINE INC.
163.31
Each
Quantity:
Quantity Price
1 163.31
A85KX72290

Mounted 2 and 4 Bolt Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Three Bolt Flange
Shaft Size
35 mm
Locking Device
Accu-Loc
Expansion Type
NON-EXP
Insert No.
UE207
Overall length:
157 mm
Overall Height
157 mm
Seal Style
Contact with Slinger
LTB
43.9 mm
Housing Config
Three Bolt Flange
Roller Configuration
Ball Bearing
Duty Type
Normal Duty
Dynamic Load
2640 kgf
Static Load
1570 kgf
Bolt Size
M12
Bearing Housing Material
PBT Thermoplastic
Weight
1.85 LB
