Home  >  Bearings  >  Pillow Blocks  >  Ball Bearing  >  Corrosive Resistance  > UCP205-16NPMZ2 AMI

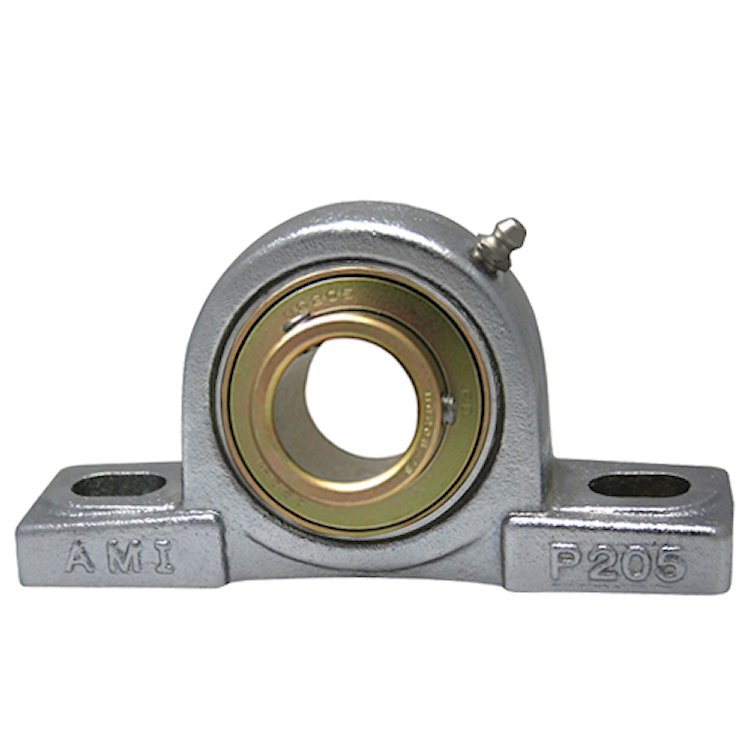

UCP205-16NPMZ2 AMI

1" ZINC WIDE SET SCREW NICKEL PILLOW BLOCK
Item #: A85KX20502
Manufacturer: ASAHI - MOLINE INC.
50.69
Each
Quantity:
Quantity Price
1 50.69
A85KX20502

Mounted PB Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Pillow block
Shaft Size
1
Locking Device
Set Screw
Shaft Centerline
1-7/16"
Insert No.
UC205-16MZ2
Overall length:
5-1/2"
Bolt Center Dim.
3-3/4" to 4-1/2"
Overall Height
2-3/4"
Seal Style
Contact with Slinger
LTB
1.339"
Housing Config
Pillow Block
Roller Configuration
Ball Bearing
Duty Type
Normal Duty
Dynamic Load
3150 lbf
Static Load
1780 lbf
Bolt Size
3/8
Base Width
1-1/2"
Bearing Housing Material
Cast Iron - Nickel Protection
Weight
1.9 LB
