Home  >  Bearings  >  Flange Units  >  Ball Bearing  >  Thermoplastic Housing  > UCFA210-31 AMI

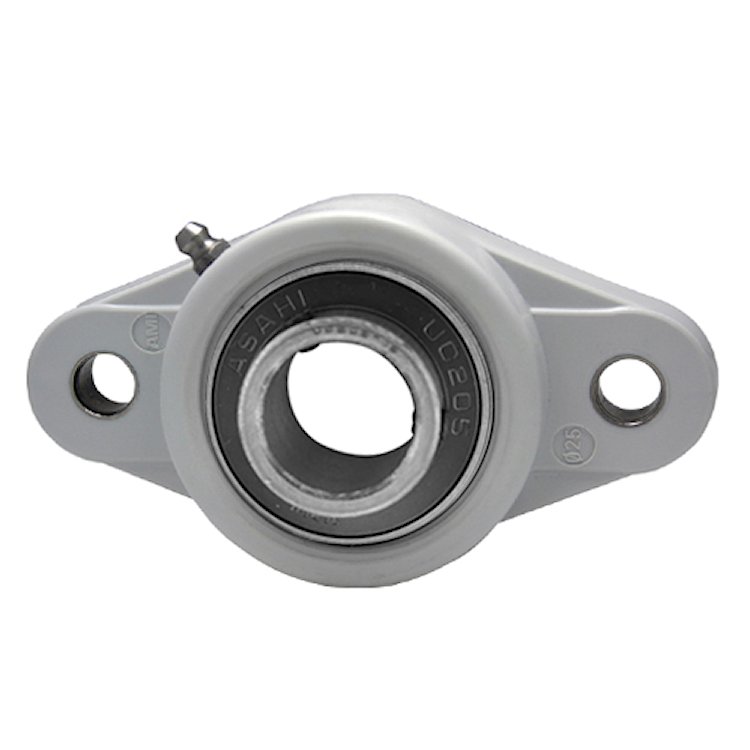

UCFA210-31 AMI

1-5/8" WIDE SET SCREW WHITE 2-BOLT FLANGE
Item #: A85KX049944
Manufacturer: ASAHI - MOLINE INC.
77.94
Each
Quantity:
Quantity Price
1 77.94
A85KX049944

Mounted 2 and 4 Bolt Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Two Bolt Flange
Shaft Size
1.9375
Locking Device
Set Screw
Bolt Center
6-3/16"
Expansion Type
NON-EXP
Insert No.
UC210-31
Overall length:
7-1/2"
Overall Height
2.031"
Base Height
45/64"
Seal Style
Contact with Slinger
LTB
2.031"
Housing Config
TWO BOLT FLANGE
Roller Configuration
Ball Bearing
Duty Type
Normal Duty
Dynamic Load
7980
Static Load
5220
Bolt Size
1/2"
Bearing Housing Material
Cast Iron
Weight
5.28 LB
