Home  >  Bearings  >  Take Up Units  >  Ball Bearing  >  Thermoplastic  > UCWTPL208CW AMI

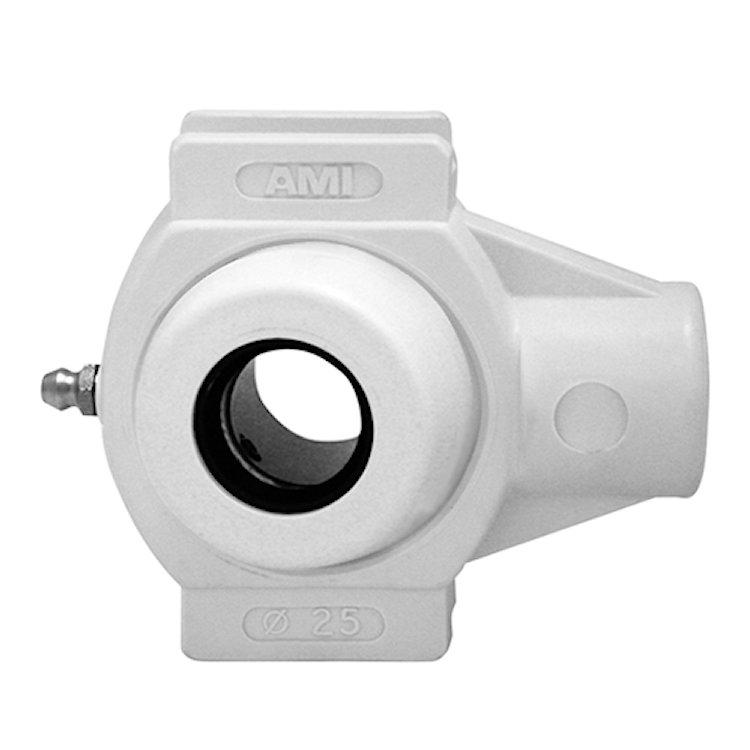

UCWTPL208CW AMI

40MM WIDE SET SCREW WHITE TAKE-UP 2 OPEN COVERS
Item #: A85KT74530
Manufacturer: ASAHI - MOLINE INC.
134.63
Each
Quantity:
Quantity Price
1 134.63
A85KT74530

Mounted TU Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Take Up
Shaft Size
40 mm
Locking Device
Set Screw
Bolt Center
85 mm
Insert No.
UC208
Overall length:
140 mm
Overall Height
114 mm
Seal Style
Contact with Slinger
LTB
49.2 mm
Housing Config
Take Up
Duty Type
Normal Duty
Slot Size
17.5 mm
Dynamic Load
2990 kgf
Static Load
1830 kgf
Bearing Housing Material
PBT Thermoplastic
Slot Size.
WIDE
Weight
2.24 LB
