Home  >  Bearings  >  Take Up Units  >  Ball Bearing  >  Side Mount  > UKT322+HE2322 AMI

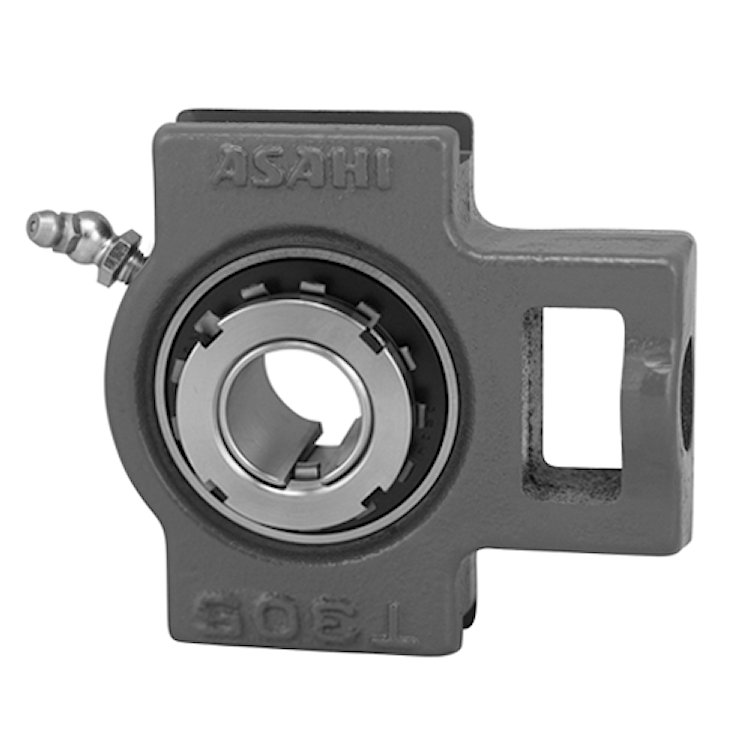

UKT322+HE2322 AMI

4" HEAVY WIDE ADAPTER TAKE-UP
Item #: A85KT40620
Manufacturer: ASAHI - MOLINE INC.
1810.00
Each
Quantity:
Quantity Price
1 1810.00
A85KT40620

Mounted TU Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Take Up
Shaft Size
4"
Locking Device
Adapter Sleeve
Bolt Center
9-1/4"
Insert No.
UK322+HE2322
Overall length:
15-5/32"
Overall Height
12-19/32"
Seal Style
Contact with Slinger
LTB
4.134"
Housing Config
Take Up
Duty Type
Heavy Duty
Slot Size
1-1/2"
Dynamic Load
46100 lbf
Static Load
40200 lbf
Bearing Housing Material
Cast Iron
Weight
95.2 LB
