Home  >  Bearings  >  Take Up Units  >  Ball Bearing  >  Corrosion Resistance  > UCST201-8NP AMI

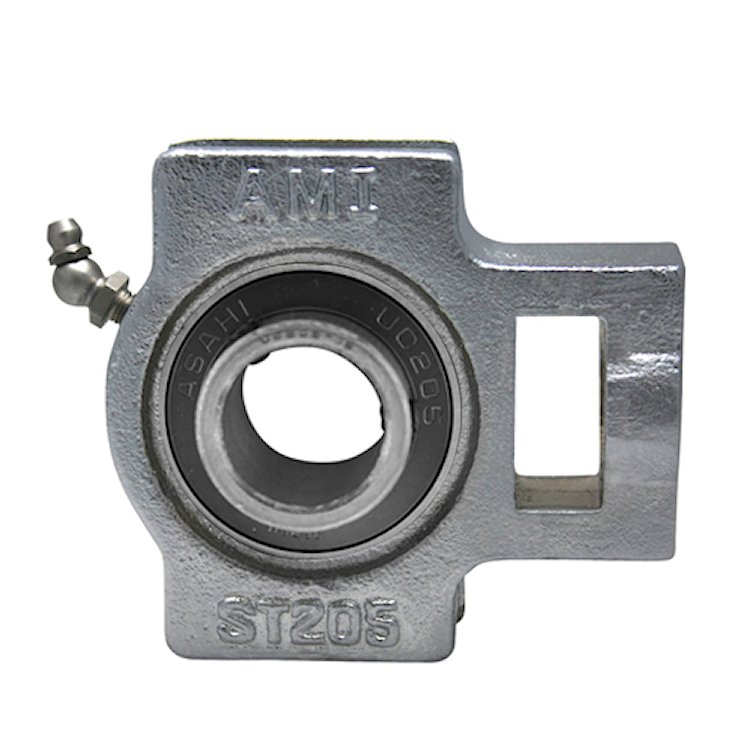

UCST201-8NP AMI

1/2" WIDE SET SCREW NICKEL WIDE SLOT TAKE-UP
Item #: A85KT10051
Manufacturer: ASAHI - MOLINE INC.
53.77
Each
Quantity:
Quantity Price
1 53.77
A85KT10051

Mounted TU Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Take Up
Shaft Size
1/2"
Locking Device
Set Screw
Bolt Center
2-3/8"
Insert No.
UC201-8
Overall length:
3-11/16"
Overall Height
3-1/2"
Seal Style
Contact with Slinger
LTB
1.220"
Housing Config
Take Up
Duty Type
Normal Duty
Slot Size
17/32"
Dynamic Load
2890 lbf
Static Load
1500 lbf
Bearing Housing Material
Cast Iron - Nickel Protection
Slot Size.
WIDE
Weight
1.86 LB
