Home  >  Bearings  >  Take Up Units  >  Ball Bearing  >  Corrosion Resistance  > UCT201-8NPMZ2 AMI

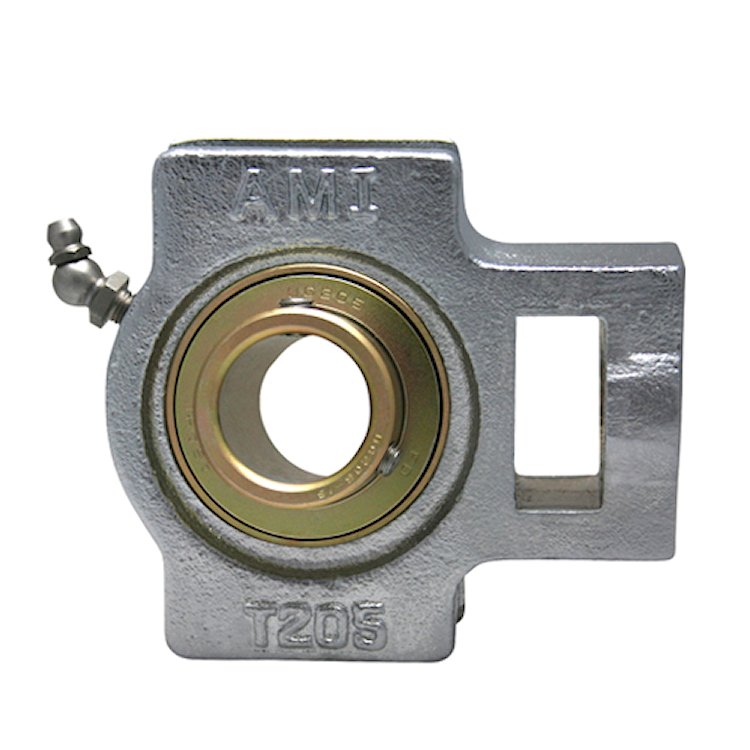

UCT201-8NPMZ2 AMI

1/2" ZINC WIDE SET SCREW NICKEL TAKE-UP
Item #: A85KT06065
Manufacturer: ASAHI - MOLINE INC.
57.85
Each
Quantity:
Quantity Price
1 57.85
A85KT06065

Mounted TU Type

Manufacturer
ASAHI - MOLINE INC.
Housing Type
Take Up
Shaft Size
1/2"
Locking Device
Set Screw
Bolt Center
2-13/32"
Insert No.
UC201-8MZ2
Overall length:
3-45/64"
Overall Height
3-1/2"
Seal Style
Contact with Slinger
LTB
1.220"
Housing Config
Take Up
Duty Type
Normal Duty
Slot Size
15/32"
Dynamic Load
2890 lbf
Static Load
1500 lbf
Bearing Housing Material
Cast Iron - Nickel Protection
Weight
1.66 LB
